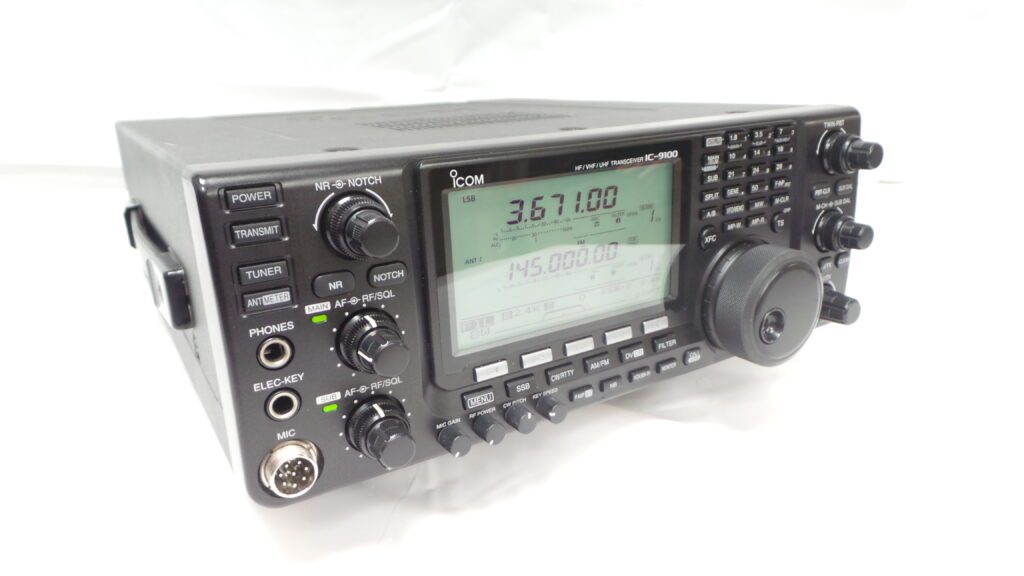

Icom IC-9100 USED | 12 Months Warranty

The Icom IC‑9100 is a true all‑in‑one station, covering HF, 6 m, 2 m, 70 cm and optional 23 cm bands with full support for SSB, CW, AM, FM, and advanced digital features. Designed for operators who want a single, powerful transceiver capable of handling everything from HF DXing to satellite operation, the IC‑9100 delivers exceptional performance across every band.

With independent dual receivers, satellite mode, RTTY decode, and optional D‑STAR DV digital voice/data, the IC‑9100 is one of the most versatile multi‑band transceivers ever produced.

Key Features

All‑Band, All‑Mode Coverage

• HF, 6 m, 2 m, 70 cm included
• Optional UX‑9100adds full 23 cm capability
• SSB, CW, AM, FM, RTTY, and optional D‑STAR DV

Independent Dual Receivers

Operate two bands at once with separate volume and squelch controls. External speakers allow true split‑audio monitoring.

Satellite Mode Operation

• Linked uplink/downlink tuning
• Automatic Doppler compensation
• 20 dedicated satellite memory channels
• Supports normal and reverse satellite modes

Optional D‑STAR DV Digital Voice/Data

With the UT‑121module installed:

• DV mode on 10 m, 6 m, 2 m, 70 cm and 23 cm
• DR mode for easy repeater access
• GPS position reporting (external GPS supported)
• Digital call sign squelch, message display, call sign logging

Built‑In RTTY Demodulator & Decoder

Decode RTTY directly on the display—no PC required. Includes a tuning indicator for precise alignment.

Advanced CW Features

• 4‑channel keyer with 70‑character memories
• Adjustable keying speed (6–48 WPM)
• Bug keyer, full break‑in, adjustable weighting
• Paddle polarity selection

High‑Performance Receiver Architecture

• Double‑conversion superheterodyne (triple conversion on 23 cm)
• Image‑rejection mixer
• +30 dBm class IP3 on HF
• Optional 3 kHz and 6 kHz 1st IF filters for narrow‑mode performance

Built‑In HF/6 m Antenna Tuner

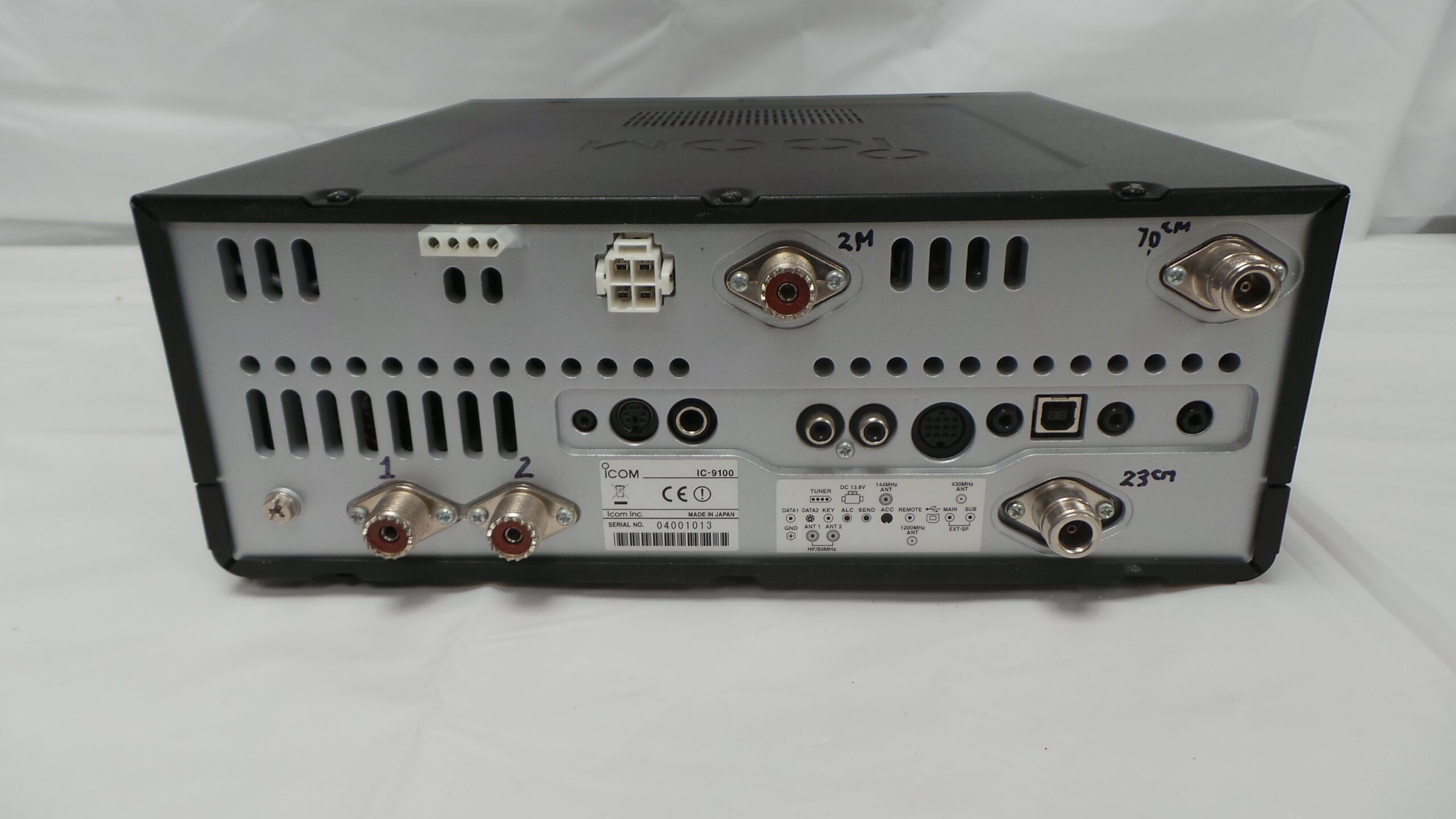

Fast, automatic tuning with memory. Dual HF/6 m antenna ports plus dedicated connectors for 2 m, 70 cm and 23 cm*.

\*23 cm requires optional UX‑9100.

High‑Stability TCXO

±0.5 ppm stability ensures reliable digital‑mode and weak‑signal operation.

Strong Output Power

• HF/6 m: 100 W
• 2 m: 100 W
• 70 cm: 75 W
• 23 cm (optional): via UX‑9100

Powerful DSP System

32‑bit floating‑point DSP + 24‑bit AD/DA converters provide:

• Digital IF filtering
• Twin PBT
• AGC loop management
• Noise reduction
• Noise blanker
• Manual & auto notch filters
• Speech compressor

Large Multi‑Function Display

Shows:

• Frequency
• 9‑character channel name
• Band scope
• RTTY decode
• SWR graph
• D‑STAR information
• GPS data

Extensive Memory System

Up to 424 memory channels(with 23 cm option), including:

• 99 per band
• 6 scan edges
• Call channels

PC Connectivity

USB port for:

• CI‑V control
• Modulation input
• Audio output
• RTTY decode output

Compatible with optional CS‑9100programming software.

Additional Features

• Built‑in voice synthesiser
• Band edge beep
• VSC (Voice Squelch Control)
• AFC (FM/DV)
• RF speech compressor
• Microphone EQ
• Two HF/6 m preamps
• 20 dB attenuator
• CTCSS/DTCS
• Quick split
• RIT/ΔTX ±9.999 kHz
• 1 Hz tuning
• Multiple scan modes
• 9600 bps data socket
• AH‑4 tuner control.
