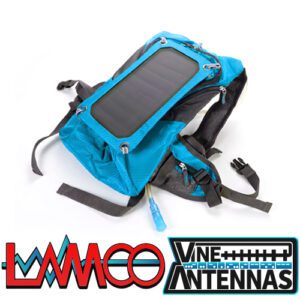

Vine Antennas RST-BKPK-Blue HAM Radio Shop Amateur Radio Dealer Supplier Vine Antennas Amateur Radio Shops HAM Radio Dealer Supplier Retailer Second Hand Twelve Months Warranty

RST-BKPK-BLUE

£119.95

ADD TO BASKET

Vine Antennas RST-HAMPOLE-12M-V2 HAM Radio Shop HAM Radio Shops Amateur Radio Shops Dealer Supplier Vine Antennas Amateur Radio Shops HAM Radio Dealer Supplier Retailer Second Hand Twelve Months Warranty

RST-HAMPOLE 12 V2

£119.95

ADD TO BASKET

Sharman SM-23 HAM Radio Shop Amateur Radio Dealer Supplier Vine Antennas Amateur Radio Shops HAM Radio Dealer Supplier Retailer Second Hand Twelve Months Warranty

Multicom SM-23

£79.95

ADD TO BASKET

Yaesu FT-5DE DEC 22 HAM Radio Shop HAM Radio Shops Amateur Radio Shops Dealer Supplier Vine Antennas Amateur Radio Shops HAM Radio Dealer Supplier Retailer Second Hand Twelve Months Warranty

RST-RigCase-Lite

£39.95

ADD TO BASKET

XPA125B LAMCO HAM Radio Shop Amateur Radio Dealer Supplier Vine Antennas Amateur Radio Shops HAM Radio Dealer Supplier Retailer Second Hand Twelve Months Warranty

Xiegu XPA125B

£559.95

ADD TO BASKET

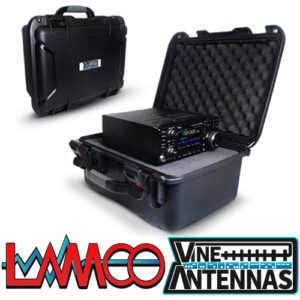

Vine Antennas RST-RigCase LAMCO Barnsley HAM Radio Shop Amateur Radio Dealer Supplier Vine Antennas Amateur Radio Shops HAM Radio Dealer Supplier Retailer Second Hand Twelve Months Warranty

RST-RigCase

£79.95

ADD TO BASKET

Vine Antennas RST-BKPK-Black 3 HAM Radio Shop Amateur Radio Dealer Supplier Vine Antennas Amateur Radio Shops HAM Radio Dealer Supplier Retailer Second Hand Twelve Months Warranty

RST-BKPK-BLACK

£119.95

ADD TO BASKET

Xiegu X6100 | Ultra Portable Shortwave Transceiver

Xiegu X6100 | Ultra Portable Shortwave Transceiver

The All New Xiegu X6100 is an Ultra-Portable HF Transceiver.

The new X6100 utilizes a proven SDR software defined radio platform with impressive performance. A powerful baseband and RF unit with rich and diversified operating functions brings you a brand-new experience in Amateur Radio. With its compact structure and tiny appearance, you can immediately set forth on you next Ham Radio Adventure. Get close to nature and enjoy the fun of outdoor communications.

Features:

  • SDR Software Defined Radio
  • HF/50MHz Full Mode (supporting data communication)
  • Transmitting Power: External power supply: 10W | Battery power supply: 5W
  • 4″ High-resolution Color Screen, 800*480
  • Built-in 3000mAh Lithium Battery
  • Built-in Automatic Antenna Tuner
  • Integrated SWR Scanner & Voice Call
  • Integrated Modem, Preset message, CW Automatic Call
  • Built-in Bluetooth/Wifi function, enable wireless audio/keyboard/mouse operation
  • Integrated USB control/transmission, supports USB HOST
  • Built-in high-stability TCXO internal clock source

General Specifications:

Receive Frequencies:

  • 0.5MHz – 30MHz
  • 50MHz – 54MHz

Transmit Frequencies:

  • 1.8 – 2.0MHz
  • 3.5 – 4.0MHz
  • 5.3515 – 5.3665MHz
  • 7.0 – 7.3MHz
  • 10.1 – 10.15MHz
  • 14.0 – 14.35MHz
  • 18.068 – 18.168MHz
  • 21.0 – 21.45MHz
  • 24.89 – 24.99MHz
  • 28.0 – 29.7MHz
  • 50.00 – 53.99MHz

Operation Mode:

  • USB/LSB (J3E), CW (A1A), FM (F3E), RTTY(F1B), AM (A3E)
  • Minimum Frequency Step: 10Hz
  • Frequency Stability: ±1.5ppm
  • External Power Supply Voltage: DC 9.0V~15.0V, negative ground
  • Frequency Stability: ±1ppm (20 minutes after start)
  • Antenna Port Impedance: 50Ω
  • Antenna Interface Type: BNC
  • Working Temperature: 0?~+55?
  • Transmission power: External power supply: 10W | Battery power supply: 5W
  • Current Consumption: Standby: 330mA (Max) | Transmit: 3A (Max)
  • Overall Dimensions: About 180*86*49mm


Transmitter:

Transmitting Power:

  • 10W (SSB/CW/FM) @13.8VDC | 5W @battery
  • 2.5W(AM) @13.8VDC | 1.5W @battery
  • Stray Suppression: 1.8 – 29.6MHz: ≥50dB | 50 – 54MHz: ≥60dB
  • Sideband Suppression: ≥50dB
  • Microphone Impedance: 200~10kΩ (600Ω in general)

Receiver:

  • Circuit Type: ZIF
  • Sideband Suppression: ≥50dB
  • MDS: -138dB
Band/Mode SSB/CW FM AM
0.5 – 1.79999MHz / / 10uV
1.8 – 1.99999MHz 0.35uV / 10uV
2.0 – 27.9999MHz 0.20uV / 2uV
28.0 – 30.0MHz 0.20uV 0.22uV 2uV
50.0 – 54.0MHz 0.20uV 0.22uV 2uV


Antenna Tuner:

  • VSWR: 1:5.0
  • Antenna tuner initial tuning time: ≤15s
  • Antenna tuner tuning read time: ≤0.2s

What’s Included:

  • 1 x Xiegu X6100 Transceiver
  • 1 x USB Type-C Data Cable
  • 1 x Multi-function Speaker Mic
  • 1 x Power Adapter
  • 1 x Charging Cable
  • 1 x User Manual
  • Portable, SDR,
