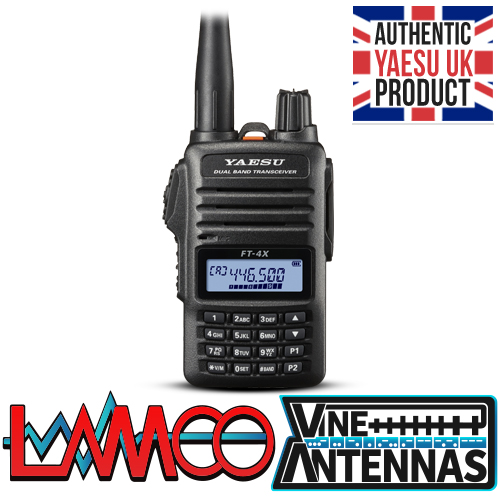

Yaesu FT-4XE | Dual Band Handheld Transceiver

Yaesu FT-4XE | Dual Band Handheld Transceiver

Yaesu FT-4XE Features

• VHF/UHF Dual Band FM Handheld Transceiver
• Ultimate Compact Design, Measuring W 52 x H 90 x D 30
• One Watt of Powerful and Clear Audio Output from the 36 mm Front Speaker
• 5 Watts of Reliable RF Power within a Compact body
• Three Selectable TX Power settings (5 W (High)/2.5 W (Middle)/0.5 W (Low))
•
Over 15 hours Operating time with Supplied 1,750 mAh Li-ion Battery pack *1
• 3.5-Hour Rapid Charger (SBH-22) Included (Using SBR-28LI)
• QRK (Quick Recall Key): Two User Programmable Keys for Quick Access to Favourite Functions
• One-touch Alarm and Quick HOME Channel Access for Emergency Signalling
• VFO Scan, Memory Scan, Programmable memory scan (PMS), Memory bank scan, and Dual receive
• Large-capacity 200 memory channels
• 3 home channels and 10 pairs of PMS memory channels
• Selectable Frequency Steps (5/10/12.5/15/20/25/50/100 kHz)
• Split Memory (Two different frequencies (TX/RX)
• WX Channels with “Severe Weather” Alert
• VOX Operation with Optional VOX Earpiece Microphone (SSM-512B)
• PC Programmable with Optional Programming Cable (SCU-35)
• Transceiver-to-Transceiver Cloning with Optional Cloning Cable (SCU-36)
• FM Broadcast Receiver Equipped
• ARTS (Automatic Range Transponder System)
• DTMF Operation
• CTCSS/DCS Operation
• Busy Channel Lock-Out (BCLO)
• Battery Saver Function
• Automatic Power-Off (APO) Feature
• Transmitter Time-Out-Timer (TOT)

Single-band Version Also Available



Frequency Ranges: RX 136 – 174 MHz
400 – 480 MHz
FM Broadcast 65 – 108 MHz
TX 144 – 146 MHz
430 – 440 MHz
Circuit Type: Direct-Conversion
Modulation Type: F2D, F3E, F2A
RF Power Output: 5 W/2.5 W/0.5 W
AF Audio Output: 1 W (Max power)
Case Size (W x H x D): 52 x 90 x 30 mm without Knob
Weight (Approx.): 250 g with SBR-28LI and Antenna



Official Yaesu Product Page
