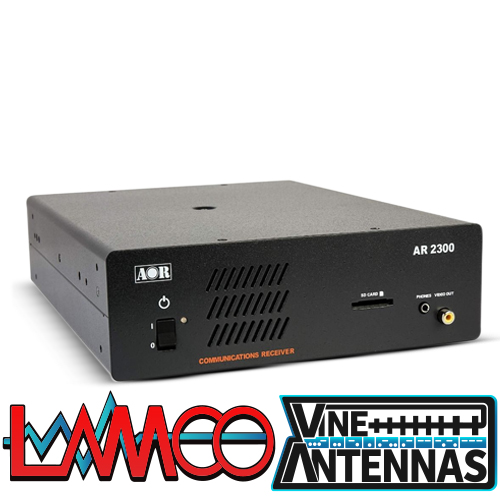

AOR AR2300 Black-Box Communications Receiver

The AOR AR2300 is a high-performance, black-box version of the AR5001D, designed for commercial, government, and investigative applications. Offering a super-wide frequency range from 40 kHz to 3.15 GHz, it provides exceptional signal detection, spectrum monitoring, and remote operation capabilities.

Key Features

Ideal for Spectrum Monitoring & Signal Analysis

• Detects signals across 40 kHz – 3.15 GHz
• Ideal for unauthorized transmission detection & interference monitoring
• Search & scan functions for frequency analysis
• Supports signal and spectrum analysis with an optional I/Q board & AR-IQ software

Computer-Controlled Black-Box Receiver

• Fully operable via PC (Windows XP, Vista, 7)
• Remote control functionality via optional LAN controller
• Compatible with laptops & desktops for flexible operation

Multi-Mode Reception & Digital Decoding

• Supports multiple analog & digital reception modes, including:
  • USB, LSB, CW, AM, Synchronous AM, FM, Wide FM, FM Stereo
  • APCO P-25 (with optional decoder), CTCSS, DCS, DTMF

Advanced RF & DSP Performance

• Direct sampling architecture for VLF, LF, and HF bands (40 kHz – 25 MHz)
• High-performance analog front-end for accurate signal reception
• 45.05 MHz IF signal processed via independent digital signal processor
• No AGC in analog stage ensures precise signal level monitoring

Simultaneous Multi-Channel Reception

• Dual-Watch Mode: Monitor two frequencies simultaneously
• Triple Reception Mode: One HF frequency plus offset reception
• Offset Reception: Monitor a primary frequency + sub-frequency (±5MHz)

Fast & Accurate Frequency Management

• Memory Storage: 2,000 channels (50 channels x 40 memory banks)
• Scanning Speed: Up to 100 channels/steps per second
• Tuning Steps: 1 Hz – 999.999 kHz
• 1 ppm frequency stability (0.01 ppm with optional GPS unit)

Advanced Audio & Data Logging

• Built-in SD Audio Recorder (Supports up to 32GB SDHC cards)
• Windows-compatible WAV format for easy playback
• Up to 240 hours of total recording time

Versatile Input/Output Options

• Dual antenna ports (N-J connectors) for optimized frequency coverage
• 45.05 MHz IF output (BNC-J) with 15 MHz bandwidth
• Digital I/Q output (USB 2.0 compatible, optional)
• Composite video output for analog security camera monitoring
• RS-232C & USB ports for firmware updates & PC control

Technical Specifications

• Frequency Range: 40 kHz – 3.15 GHz
• Modes: USB, LSB, CW, AM, FM, WFM, FM-Stereo, APCO P-25 (optional)
• Memory Channels: 2,000 (40 customizable banks)
• Antenna Impedance: 50Ω
• Dimensions: 285mm (D) × 220mm (W) × 70mm (H)
• Weight: Approx. 3 kg
• Power Supply: 10.7V – 16V DC (1.5A max, 200mA standby)
• Operating Temperature: 0°C – 50°C (32°F – 122°F)**

About AOR Ltd.

AOR has been a leader in radio communications technology since 1978, delivering cutting-edge solutions to government agencies, law enforcement, and professional monitoring organizations worldwide.

The AOR AR2300 is the ultimate black-box receiver, offering powerful frequency monitoring, advanced signal processing, and flexible remote operation—a must-have tool for critical signal detection and spectrum analysis.
