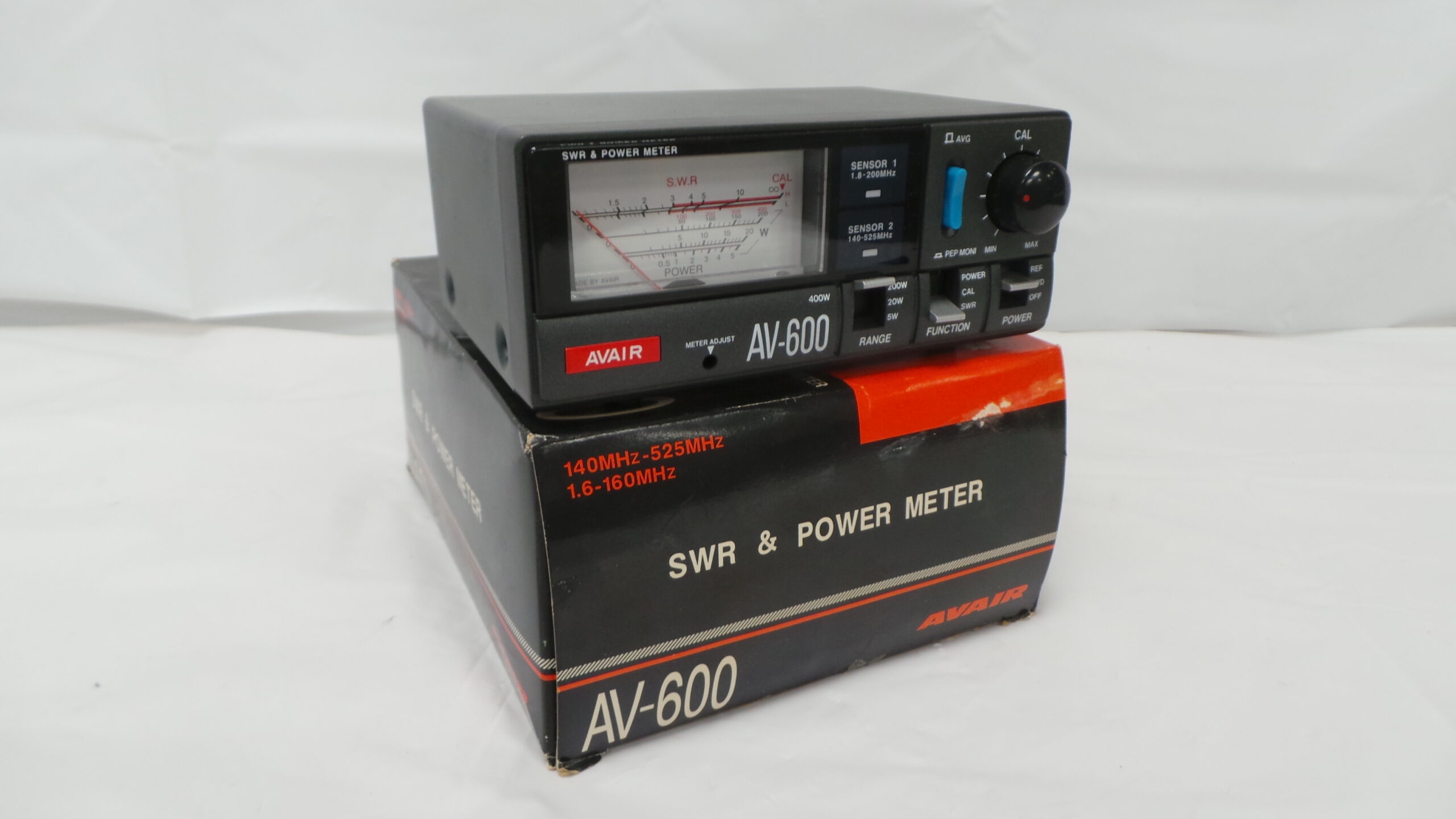

Avair AV-600 USED | 90 Days Warranty

The Avair AV-600 is a compact, dual-band VSWR and power meter designed for HF, VHF and UHF use. It features separate sensors for HF (1.8–160 MHz) and VHF/UHF (140–525 MHz), allowing accurate forward and reflected power measurements across a wide frequency range. Ideal for shack or mobile use, the large, easy-to-read meter scale and selectable AVG/PEP reading make it well suited to tuning antennas, monitoring transmitter performance and protecting your equipment.

• Frequency coverage (Sensor 1): 1.8–160 MHz
• Frequency coverage (Sensor 2): 140–525 MHz
• Input impedance: 50 Ω
• Power ranges: 0–5 W, 20 W, 200 W, 400 W (selectable)
• Minimum input power: 0.5 W (typical)
• Measurement functions: Forward power, reflected power, SWR
• Reading modes: Average and PEP (peak envelope power)
• Connectors: 50 Ω coaxial (TX and ANT)
• Meter illumination: 13.8 V DC lamp (via rear DC jack)
• Power requirement (lamp only): 13.8 V DC
• Dimensions (W × H × D): 155 × 63 × 103 mm (approx.)
• Weight: 720 g (approx.)
