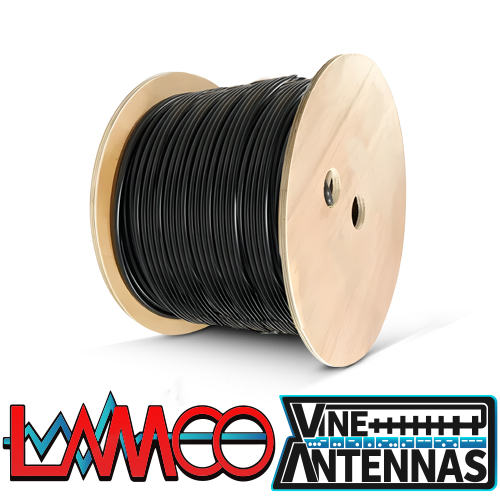

Cabnex RG-213U | 100M 50Ω Coaxial Cable

£149.95
£149.95

Cabnex RG-213U coaxial cable. High quality cable.

High performance, low loss cable, this RG213U is ideal for any HF/VHF installation, priced here by the metre.

Specifications:

  • Conductor: 7 x 0.75mm ± 0.02mm
  • Conductor Material: Stranded Bare Copper Insulation
  • Diameter: 7.25mm (±0.30mm)

Insulation Material:

  • Solid Polyethelyne Shield: 192 x 0.18mm ± 0.008mm
  • Shield Material: Copper Clad Aluminium Braid Braid
  • Coverage: 98 ± 2%
  • Overall Diameter: 10.30mm (±0.50mm)

Electrical Characteristics

  • Capacitance (pF/m): 101 ± 3
  • Impedance: 50 ± 2
  • Velocity of Propagation: 66%
  • Inner Conductor DC Resistance (20°C) 5.90 /KM
  • Attenuation at 20°C (dB/100m) 10 Mhz 2.16, 50 Mhz 4.90, 100 Mhz 7.20, 200 Mhz 10.50, 400 Mhz 15.10, 1000 Mhz 29.50, 3000 Mhz 62.30

Priced per metre.
