Diamond MX 3000 | Antenna Triplexer

In stock

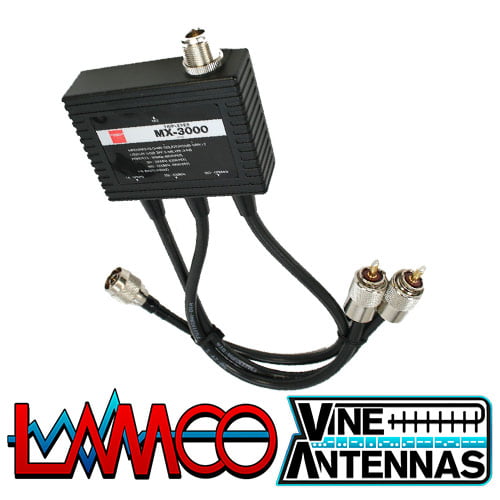

Diamond MX 3000 Triplexer for HF, UHF and 23cm

Diamond MX 3000

Specifications:

Port: LPF/BPF/HPF
Frequency (MHz): 1.6-160/350-500/850-1300
CW W: 400/200/100
PEP W: 800/400/200
Loss dB: .2/.3/.4
Isol dB: 55/55/55
Mix Connector: N-Jack (F)
Port connector: PL-259 & 12″ 5D cable / PL-259 & 12″ 5D cable / N-Male & 12″ 5D cable
Diamond Antenna Triplexers are used to split or combine HF, VHF, and UHF signals.
These triplexers may be used for combining three transceivers or transceiver connectors with different band ranges onto one coax feed line.
Diamond triplexers feature a high-quality aluminum case with a black finish.
The Diamond MX-3000 is a mobile triplexer with a singleSO-239 input into three ouputs connected to 14 inch cable with various outputs of 2m, 70cm and 23cm. *
1.6 – 60MHz 800W PEP Loss 0.2dB * 350 -500MHz 500W PEP Loss 0.3dB * 850 – 1300MHz 200W Loss 0.4dB * MX-3000 Mix/HPF ÔNÕ others PL-259 * Size 65 x 85 x 23mm approx
