Specifications.
Built-in power supply and antenna selector
Dimensions. W32 H13 D36 cm（L12.59”×H5.11”×D14.17”）
Weight 9.6 Kg（21.16bs）

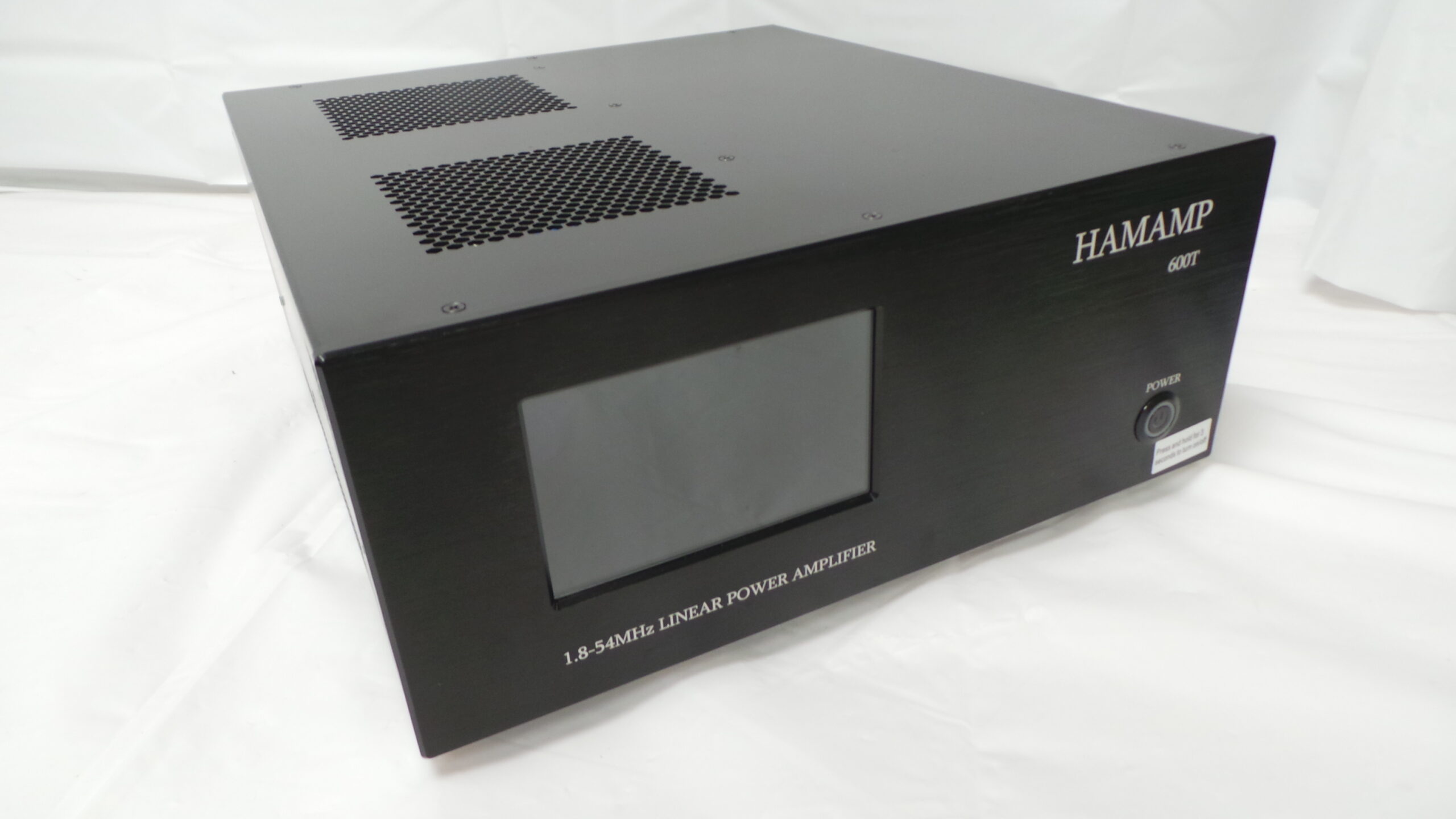

Colour Screen
12.7cm by 8.89cm（5 inch), resolution 800×480, 65K, 16 Bit RGB
Displays Multiple Parameters, Status, PEP output, PA Voltage, PA Current, Power Gain, Temperature, SWR, Frequency and Band
Connects to all Transceivers easily with RF Sensing for Band selection and control
Frequency Coverage 1.8 Mhz to 50 Mhz including WARC Bands
Power Output 600W PEP SSB, 50Mhz output 500W PEP
Clean and low distortion output using single 1200w MOSFET
Spurious emission less than – 60 dB (50 MHz – 65 dB)
Third order distortion (Double Tone Test) 36 dB (typical)
Input 50 ohm Unbalanced Matching with SWR less than 1.8:1

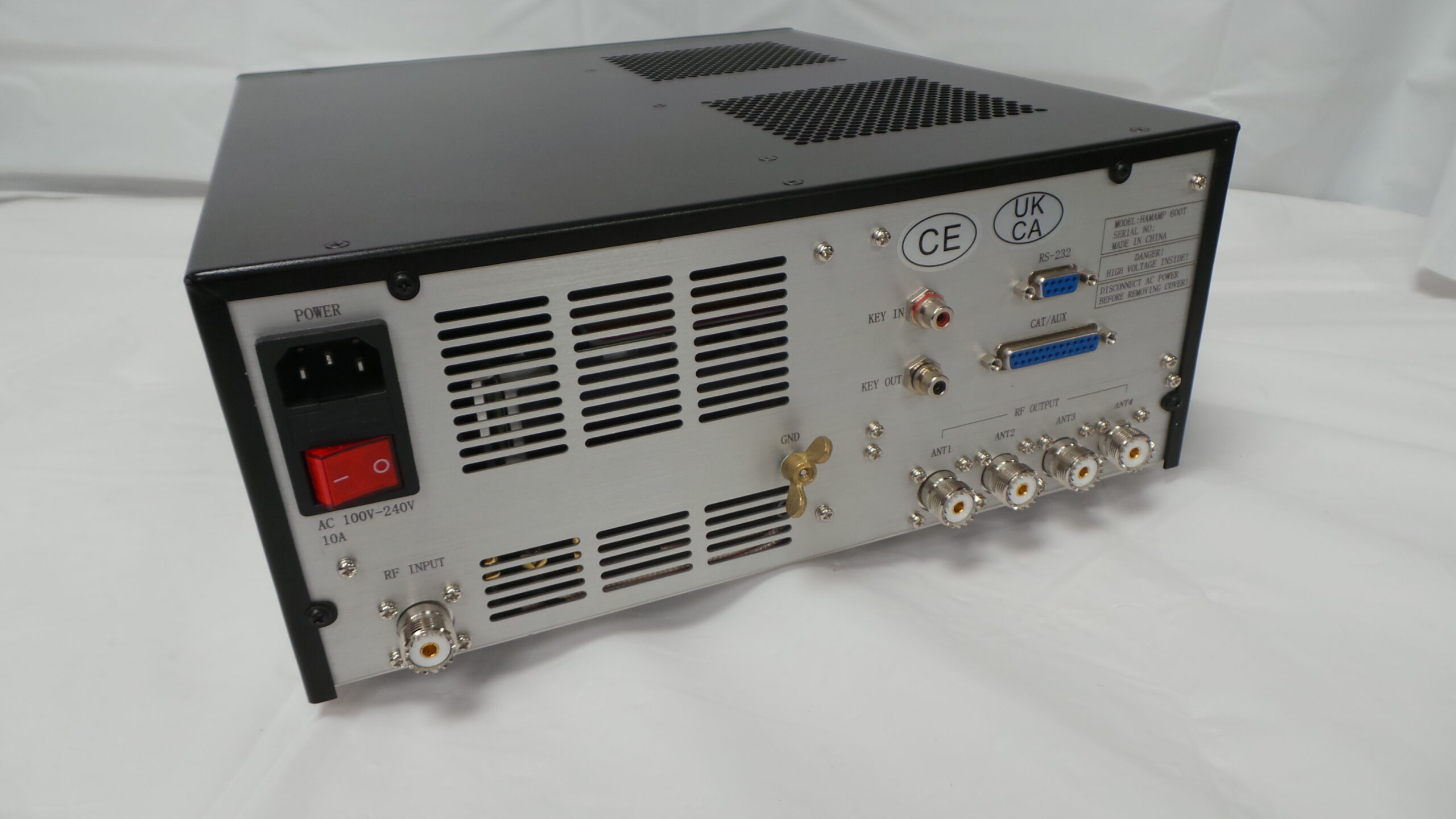

4 SO239 Antenna Connectors
Comprehensive Protection Systems including Temperature, Voltage, Current, Reflection, SWR, PW and VRF Maximum Values, Overdrive and Open/ Short Circuit Protection
Quiet Operation with large heat sink and near silent cooling fan
Easy to Maintain
Hardware warnings stored internal to Amplifier using no volatile memory
Power Supply Voltage Range (100 to 250v), Limited inrush current and pure sinusoidal, Automatic Power Factor correction (PFC)
Rear mounted RS232 Port for remote control
