£299.00
Out of stock

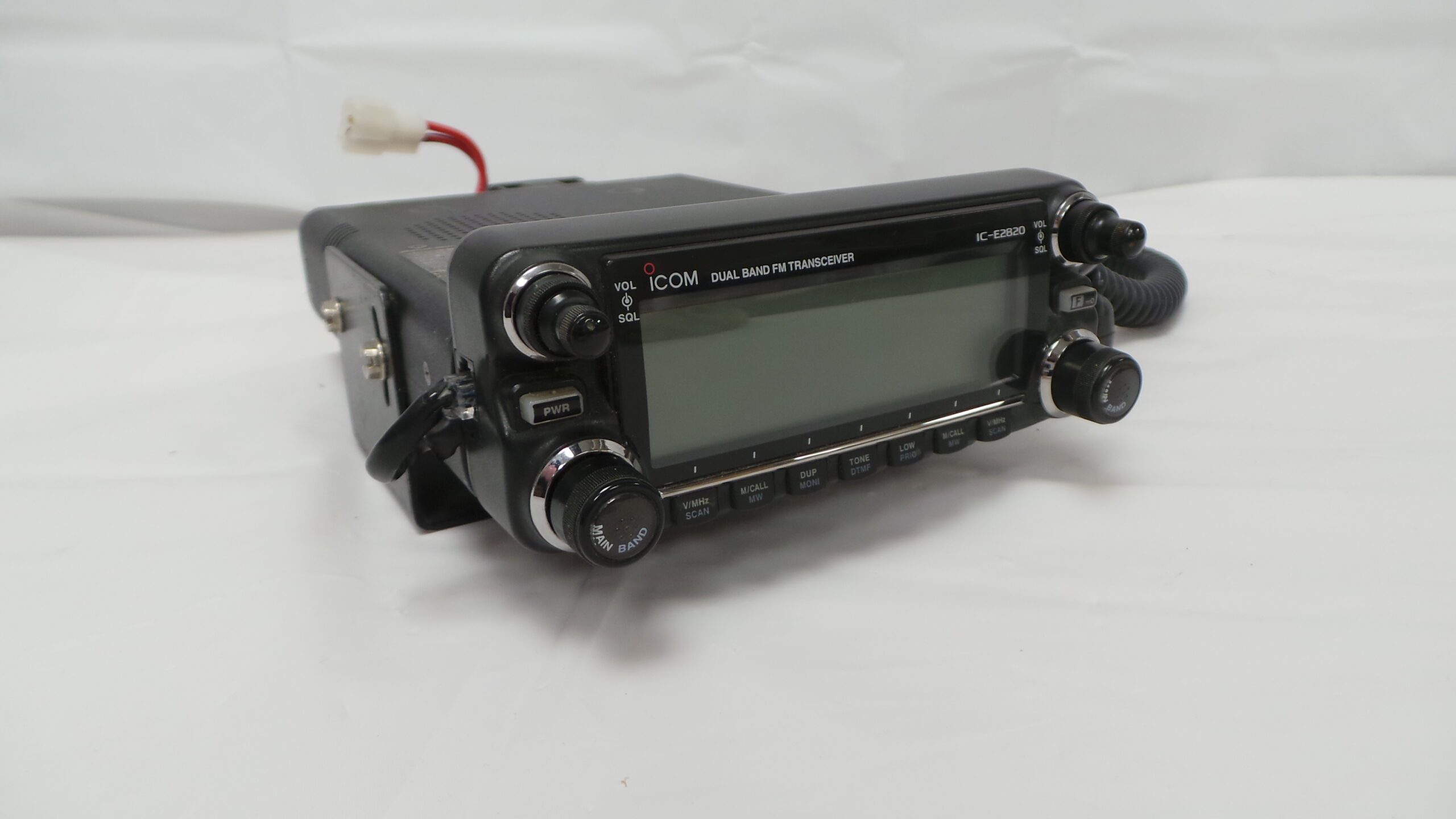

Icom IC-E2820 is a premium dual-band VHF/UHF mobile transceiver with D-STAR digital voice and data capability, offering exceptional audio clarity, robust performance, and advanced functionality for serious amateur radio operators.
Covering 144–146 MHz (VHF) and 430–440 MHz (UHF), the IC-E2820 delivers up to 50 watts of output power on each band, supporting FM, D-STAR digital voice, and data communication. It features dual independent receivers, allowing true dual-band and dual-mode operation (e.g. FM on one side and D-STAR on the other).
Offering full D-STAR capability, the IC-E2820 enables digital voice communication, call sign routing, and GPS data exchange (with optional GPS mic). It’s the perfect choice for those seeking a reliable and high-performance dual-band transceiver with digital flexibility.
| Specification | Details |
|---|---|
| Model | Icom IC-E2820 |
| Frequency Coverage | 144–146 MHz (VHF) / 430–440 MHz (UHF) |
| Modes | FM (analog), D-STAR digital voice/data |
| Power Output | 50W / 15W / 5W selectable |
| Receiver Type | Double superheterodyne |
| Memory Channels | 200 per band |
| Display | Large multi-segment LCD with backlight |
| Audio Output | 2.5W internal speaker |
| GPS Input | Optional HM-189GPS microphone or external GPS unit |
| Antenna Connector | SO-239 (UHF female) |
| Power Supply | 13.8V DC ±15%, 13A max |
| Dimensions | 150 × 40 × 155 mm (main body only) |
| Weight | 1.2 kg (approx.) |
| Condition | Second hand – tested and working |
| Manufacturer | Icom Inc., Japan |
