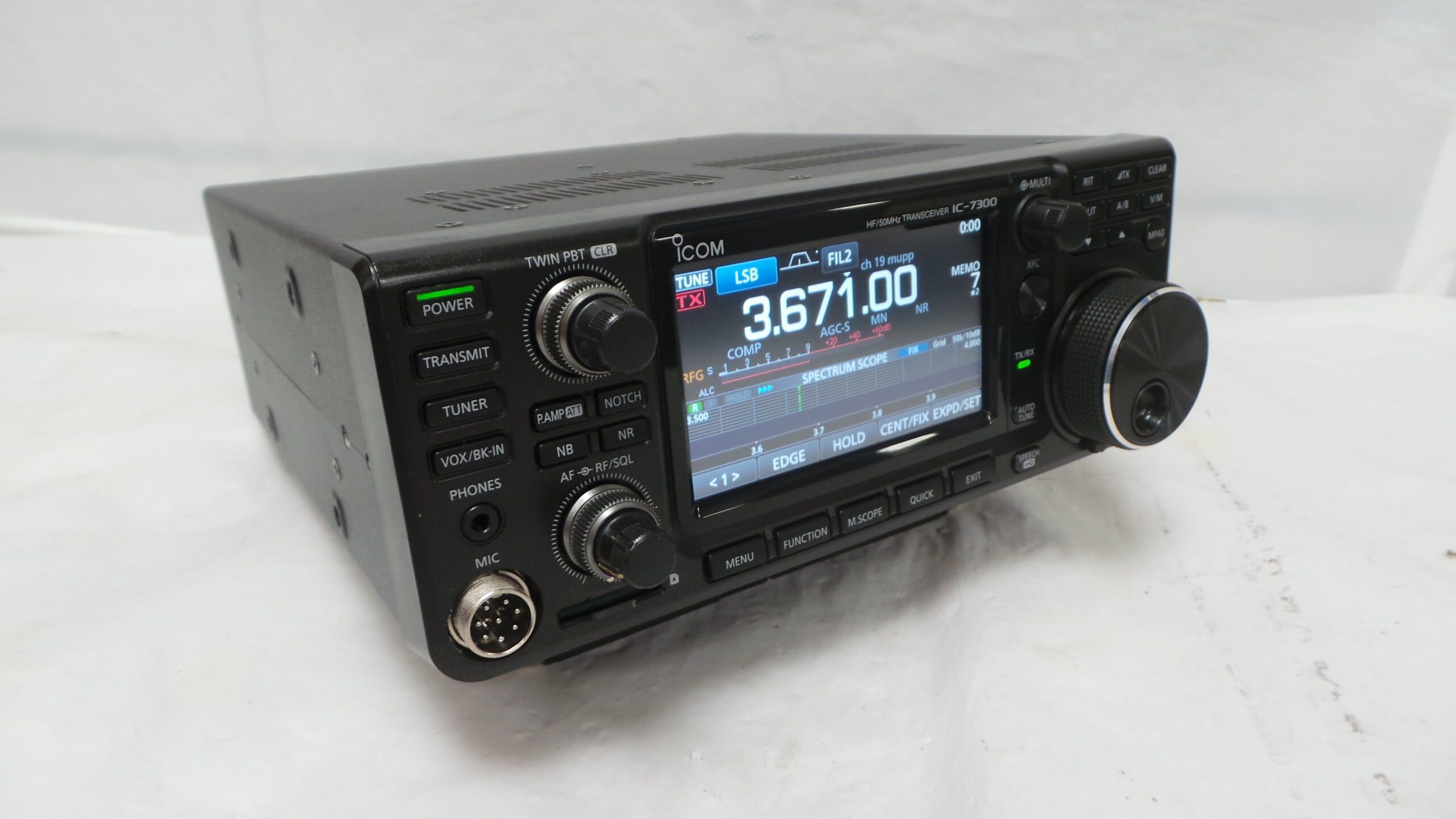

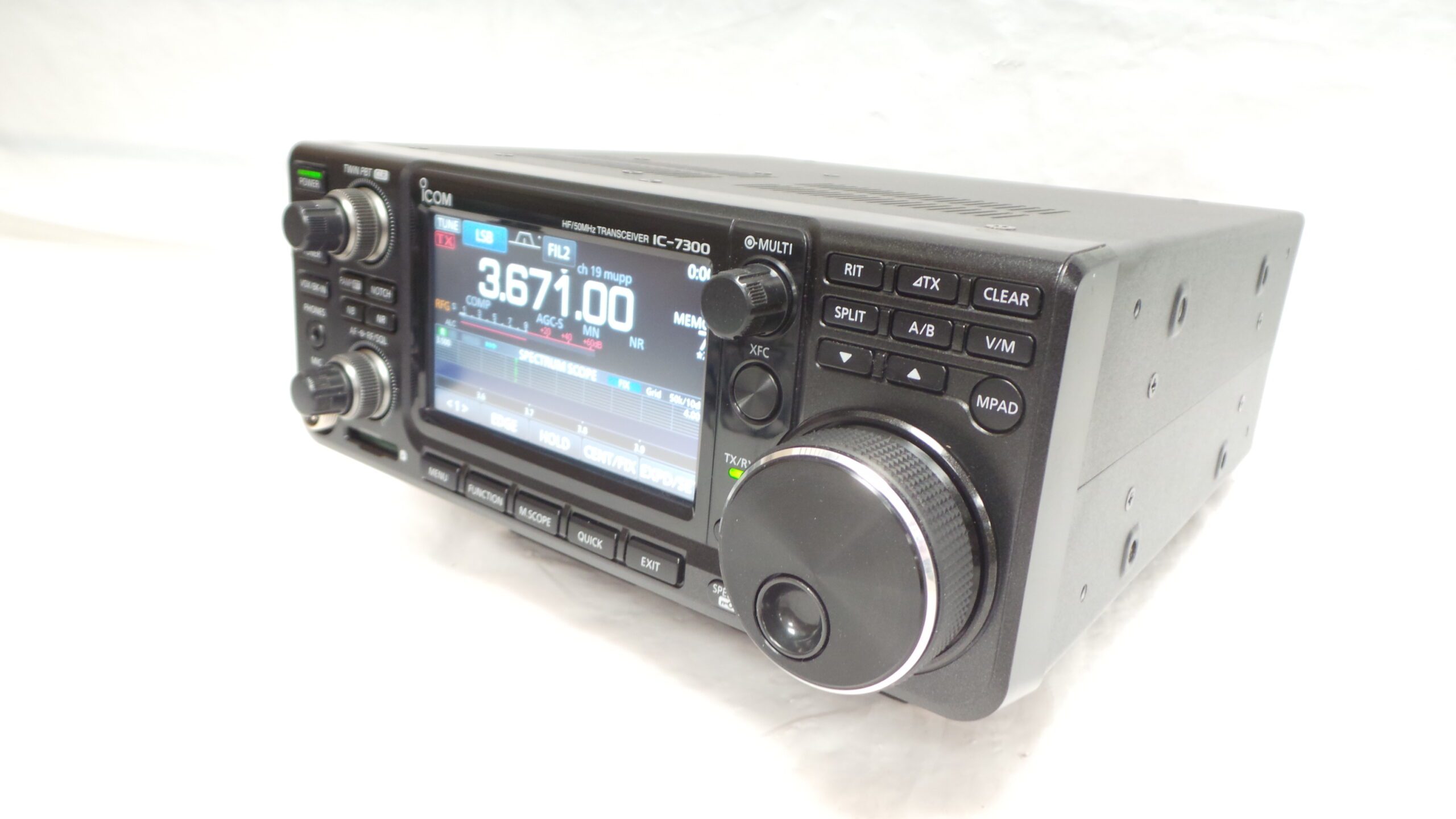

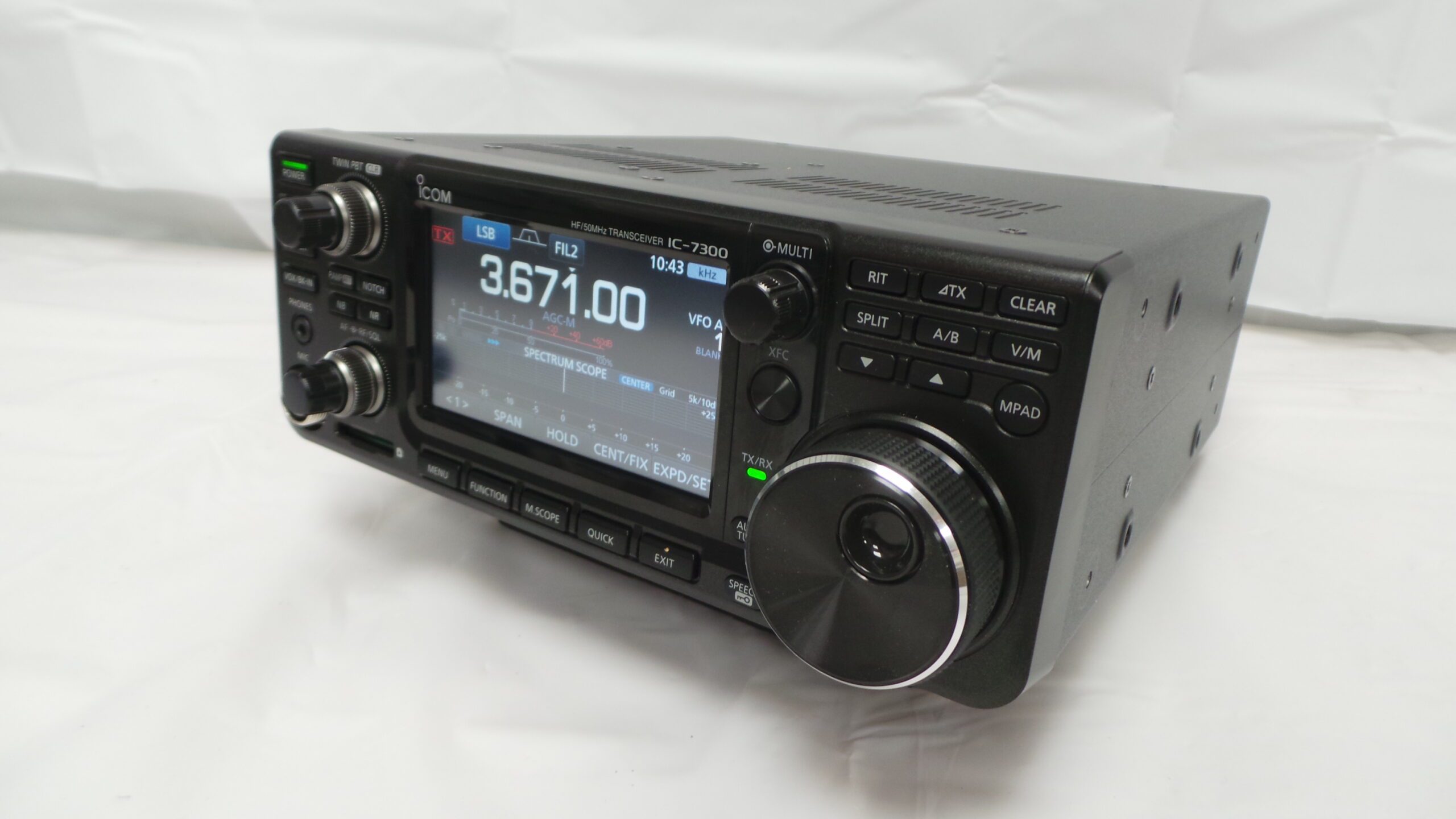

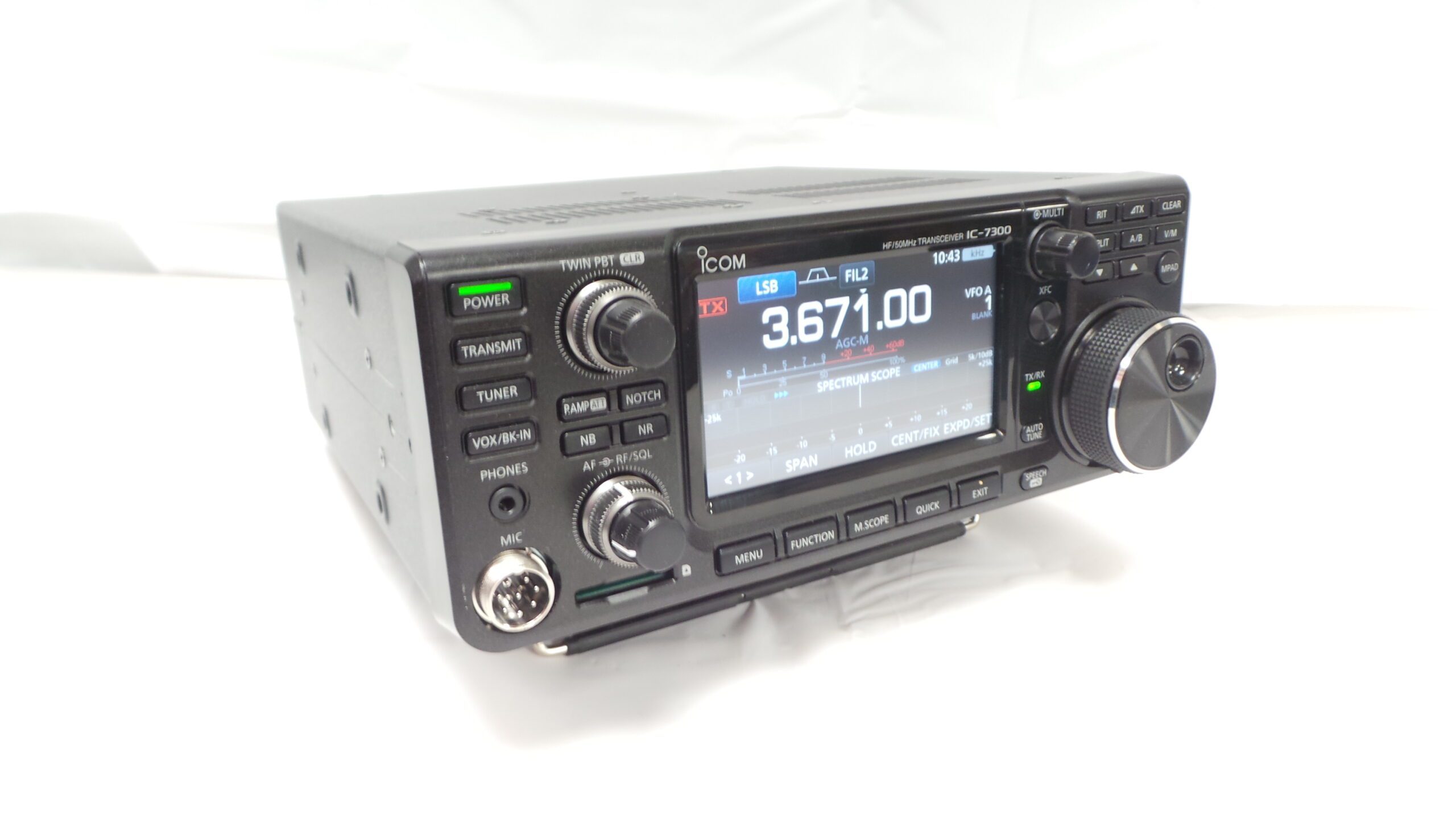

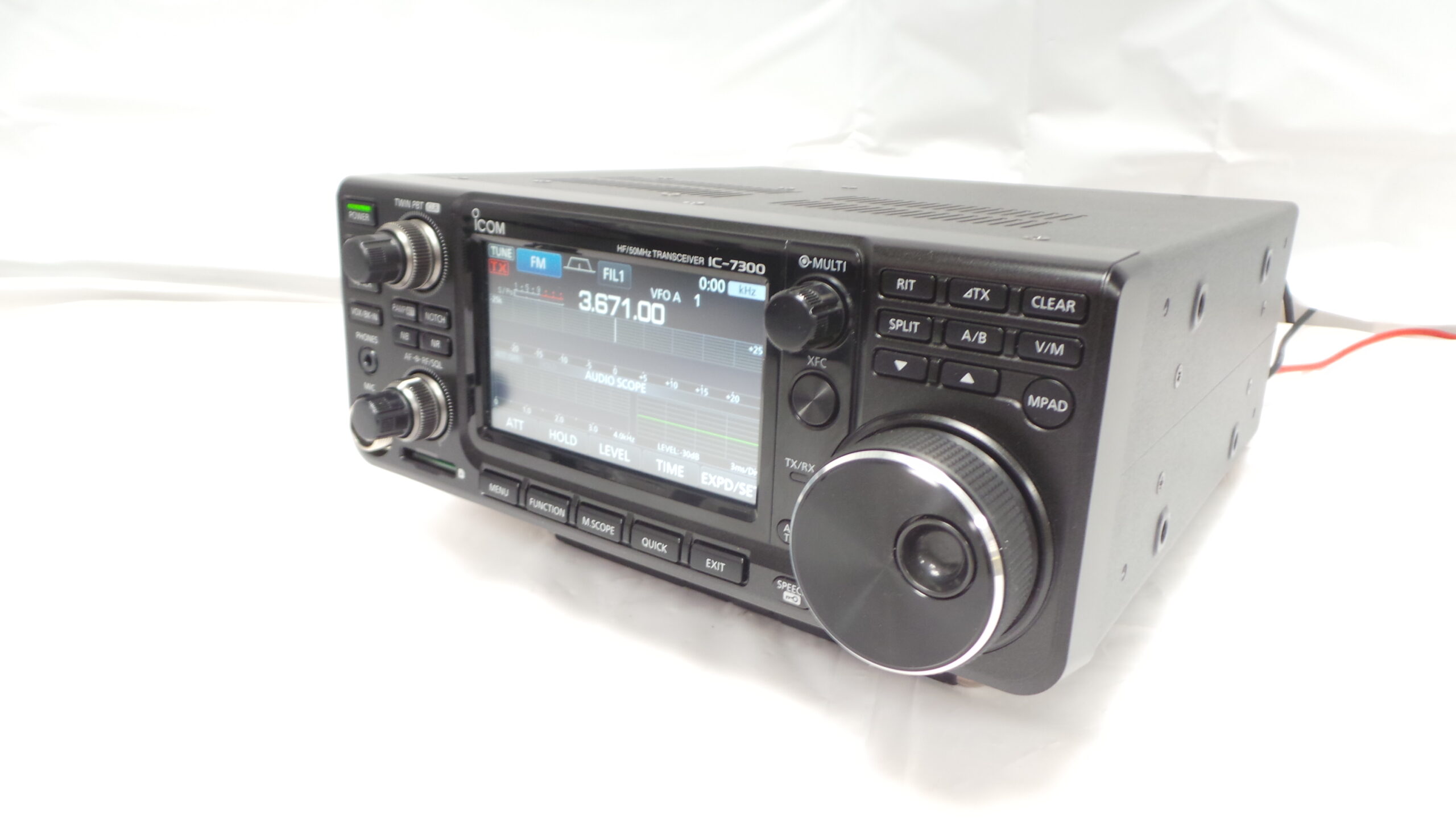

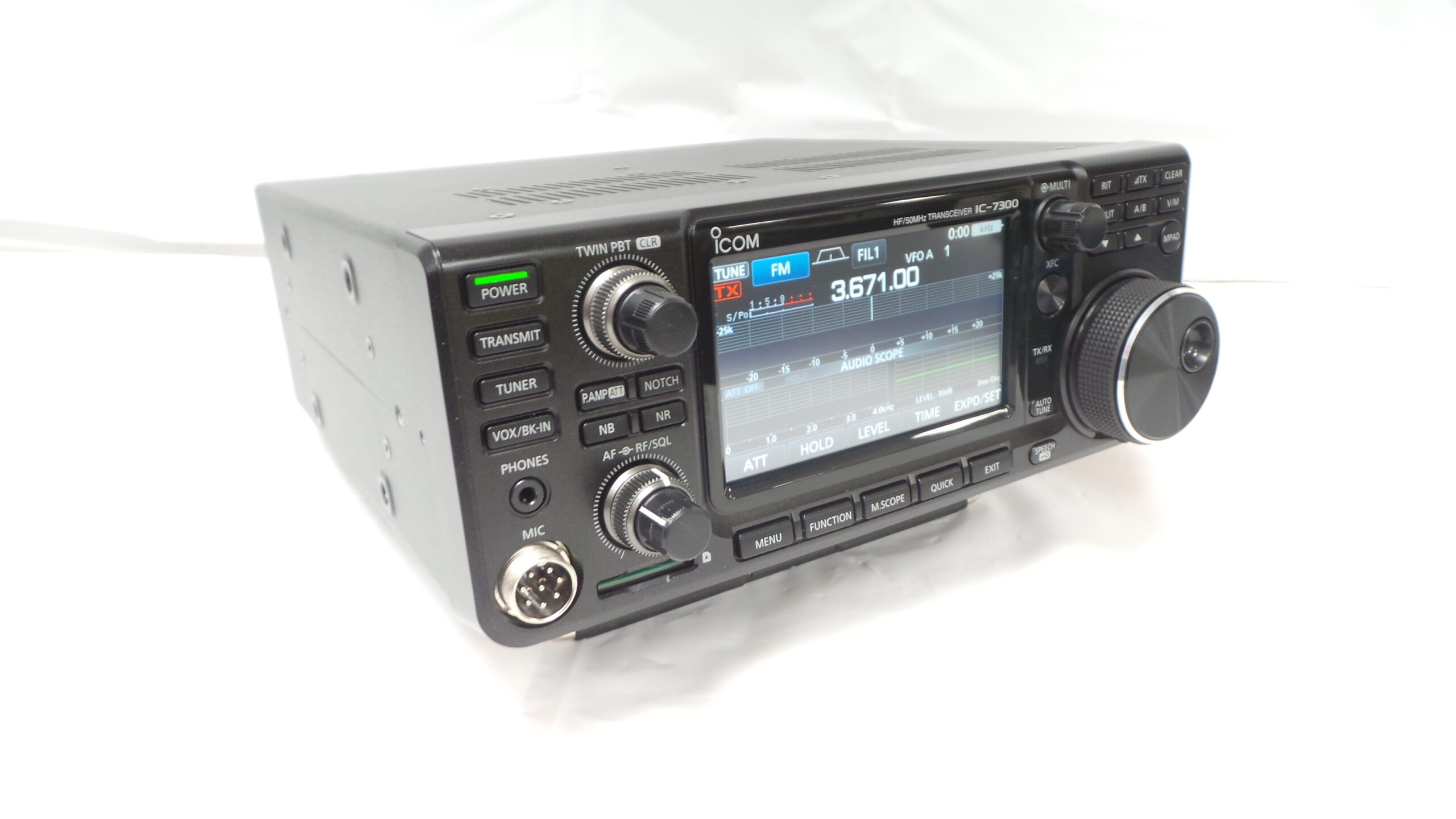

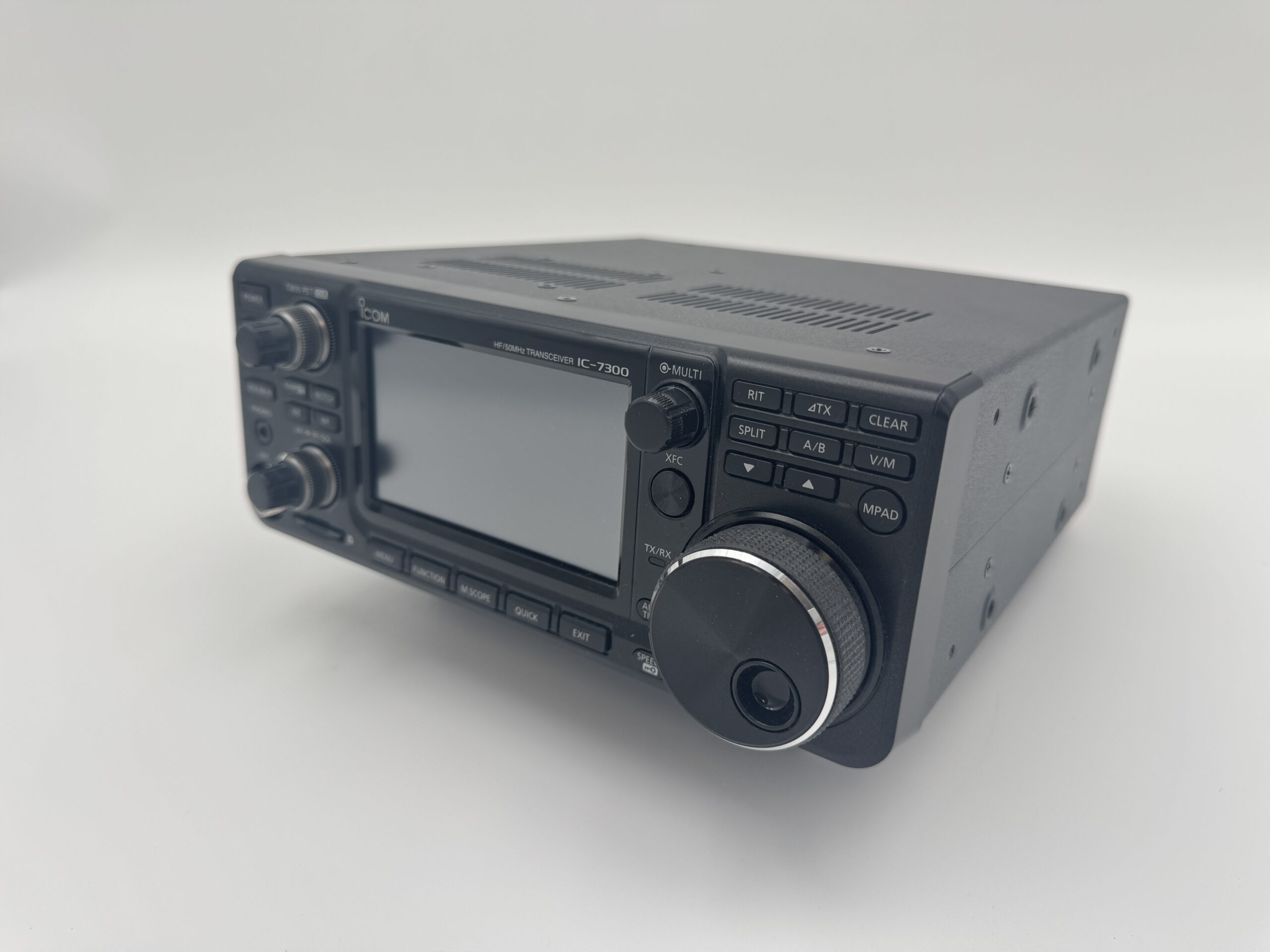

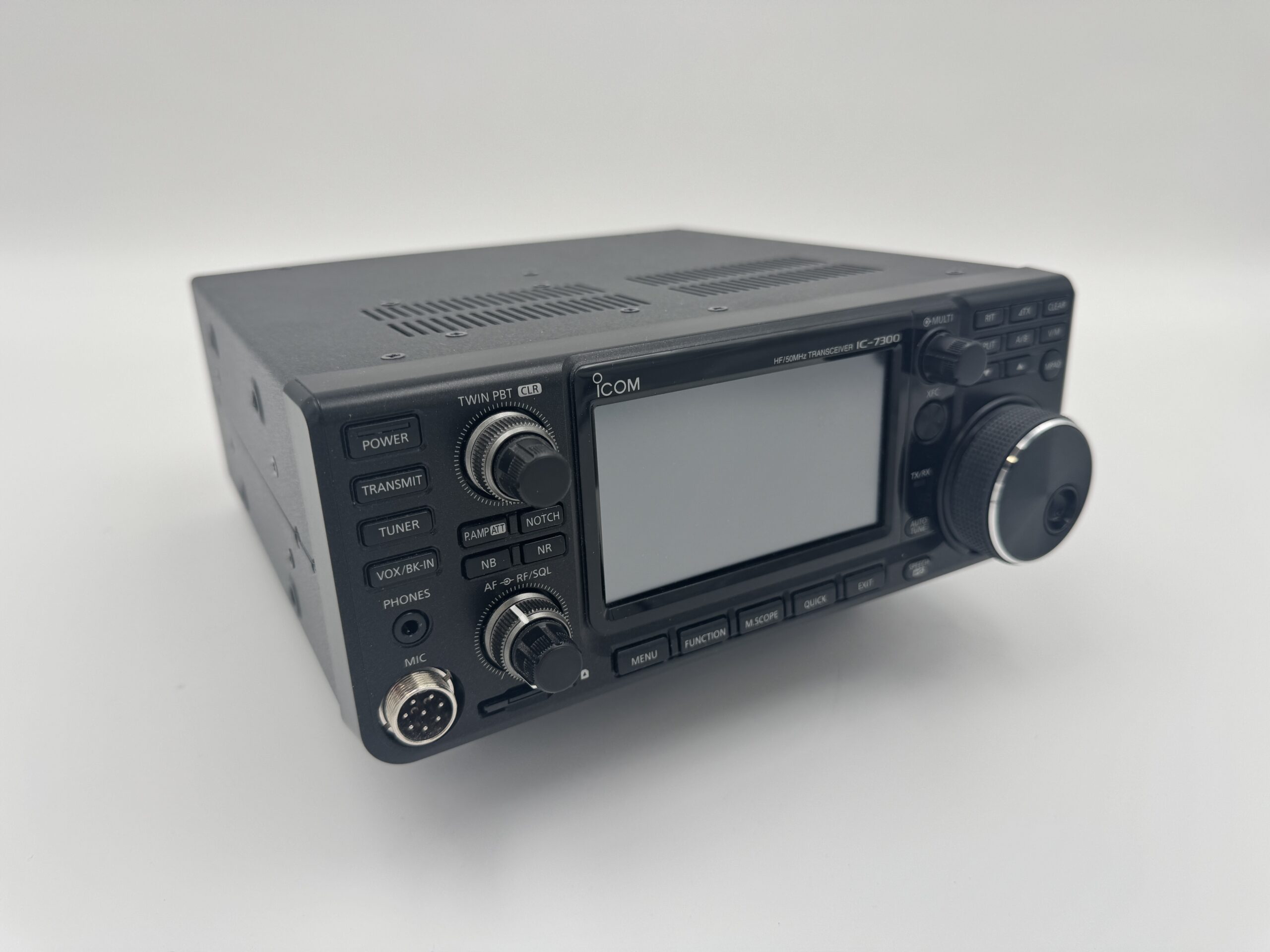

The Icom IC-7300 HF transceiver stands out in the amateur radio market with its sleek design and innovative technology. It features a 4.3-inch touchscreen colour TFT LCD and integrates a high-performance real-time band scope, a first for amateur radios. At the heart of the IC-7300 is the RF Direct Sampling System, which processes RF signals primarily through an FPGA (Field-Programmable Gate Array). This approach minimizes traditional physical components, resulting in a compact unit that provides exceptional performance, particularly in real-time spectrum analysis.
With a robust output power of 100 watts on HF/50MHz bands and 50 watts on the 70MHz band (for European versions), the IC-7300 has a built-in automatic antenna tuner that enhances its usability for field operations. The direct sampling technology allows for the digitization of RF signals before they undergo further processing, significantly reducing noise from intermediate frequency stages. This advancement ensures that even weak signals can be effectively received, thanks to improved third-order intercept point (IP3) performance and optimized A/D conversion that minimizes signal distortion.
The IC-7300 also boasts impressive specifications, including a typical RMDR of about 97dB and enhanced phase noise characteristics, which improve both receive and transmit signal clarity. The array of fifteen bandpass filters protects the direct sampling process, ensuring that only the desired signals are processed. Users will appreciate the intuitive interface the large touch screen provides, which facilitates easy access to various functions, including the waterfall and audio scope features. These tools allow operators to monitor signal strength over time and analyze audio characteristics, making the IC-7300 a powerful addition to any amateur radio setup.
