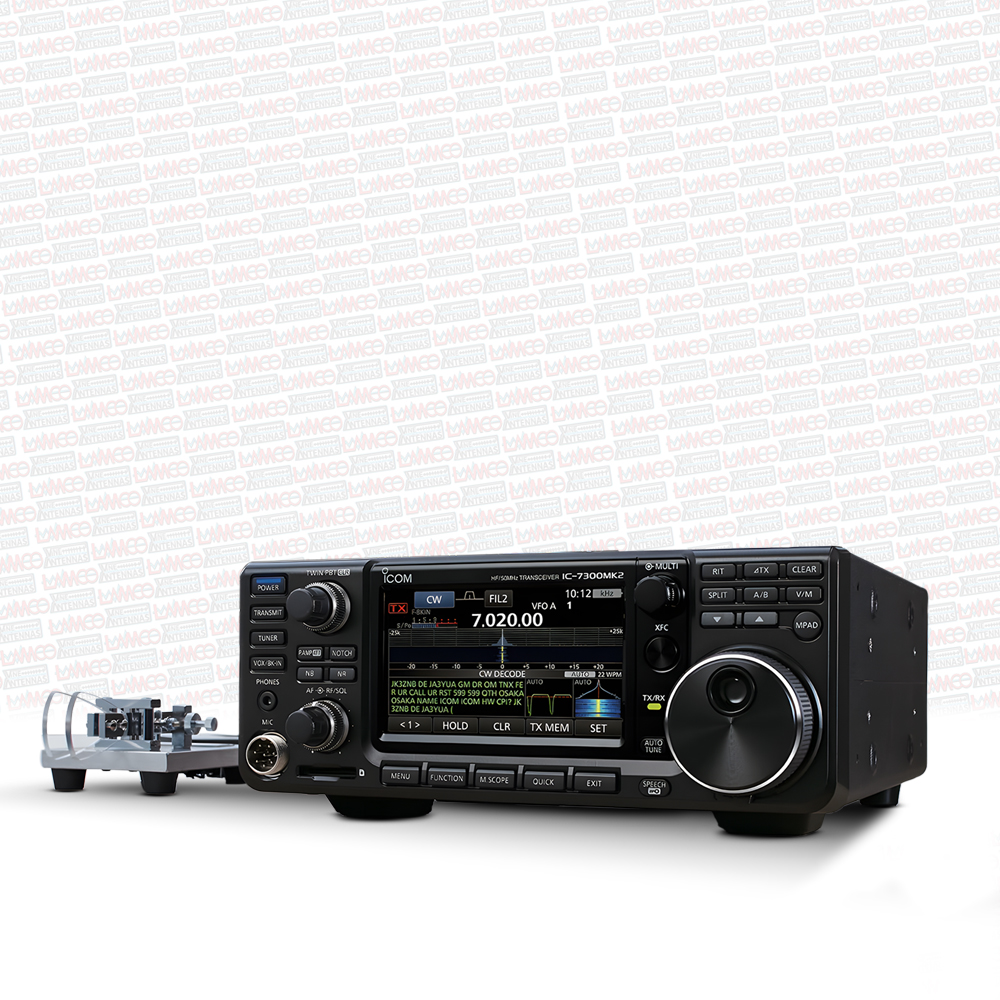

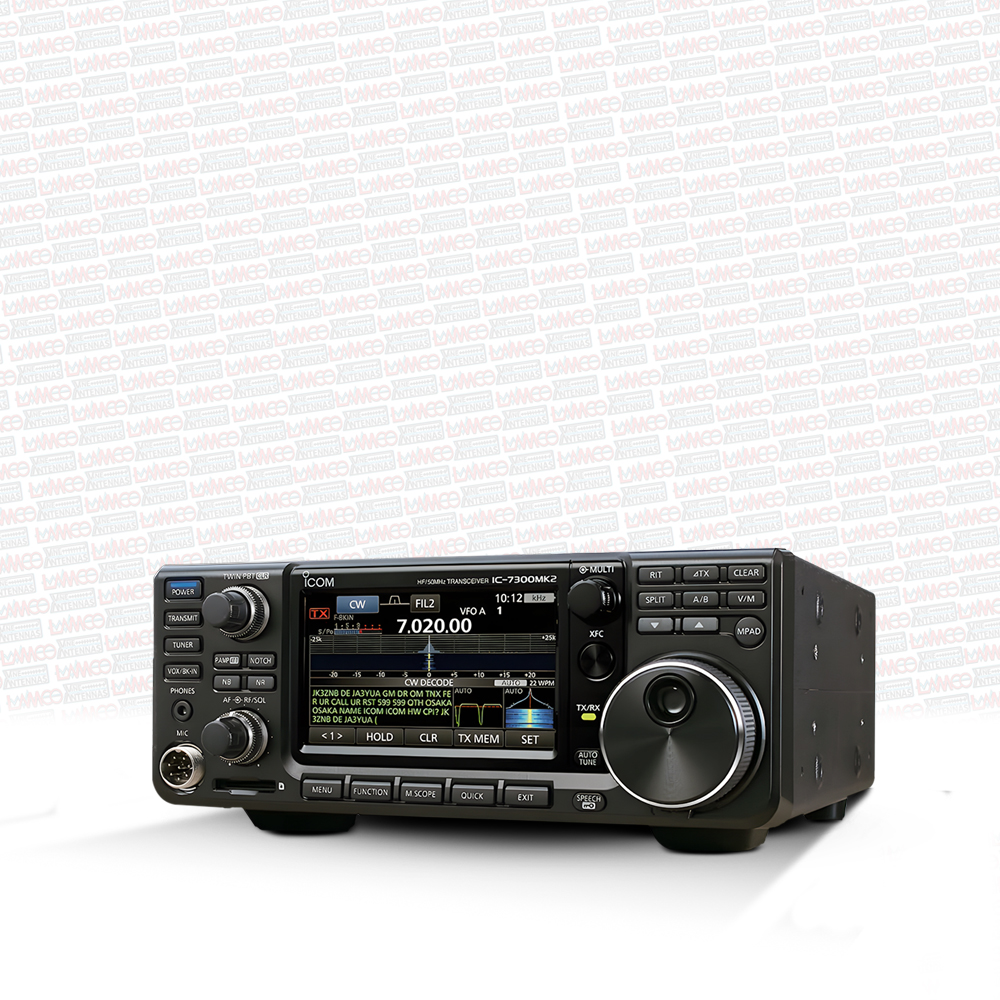

Icom IC-7300MK2 HF/50/(70) MHz Transceiver*

The Icom IC-7300MK2 is the next-generation compact HF transceiver, unveiled at the JARL Ham Fair 2025 and set to begin shipping at the end of 2025. Building on the worldwide success of the original IC-7300, which sold over 100,000 units globally, the IC-7300MK2 delivers enhanced performance, innovative features, and greater efficiency for serious amateur radio operators.

*The 70 MHz band is available on the European Version.

⚡ Enhanced Performance

• Improved RMDR and Phase Noise performance, reducing adjacent-signal blocking.

• Carefully selected components and optimised DC power design.

• RX standby current consumption reduced by ~23%, lowering heat generation.

• Typical RMDR: 105 dB (2 kHz).

• Typical TX Phase Noise: –139 dBc/Hz at 1 kHz separation.

🚀 New Icom Firsts

• HDMI™ Port for connecting to an external display (scope, waterfall, menus, and audio output).

• Built-in CW Decoder – decode Morse code directly without a PC.

🔧  Icom IC-7300MK2 Key Features

• HF / 50 / 70 MHz operation*.

• Separate RX antenna IN/OUT connectors for use with receive-only antennas, filters, and preamps.

• USB Type-C™ with dual virtual COM ports and audio for simultaneous FT8 + logging operation.

• Built-in LAN (Ethernet) for simple RS-BA1 remote control – no base station PC required.

• Supports the newly allocated 5 MHz band (Europe version).

• Lower power consumption and reduced heat generation for long-term reliability.

📡 Additional Highlights

• Full external connectivity:

  • RX Antenna IN/OUT (SMA)

  • DC Power Socket

  • Ground Terminal

  • Tuner Socket

  • ALC/SEND Jacks

  • KEY Jack

  • Antenna Connector

  • USB Type-C™ Port

  • HDMI™ Port

  • ACC Socket (13-pin)

  • LAN (Ethernet) Port

  • External Speaker Jack

  • Remote Control Jack

• Compact design with modern connectivity for today’s operators.

✅  Icom IC-7300MK2 Summary

The Icom IC-7300MK2 takes the innovation of the original IC-7300 to the next level, combining superior receiver performance, modern connectivity options, and first-in-class features such as an HDMI™ port and built-in CW decoder. Ideal for DXers, contesters, and advanced HF operators, it provides a robust, efficient, and future-ready platform for amateur radio communications.

* 70 MHz band available on European version.
