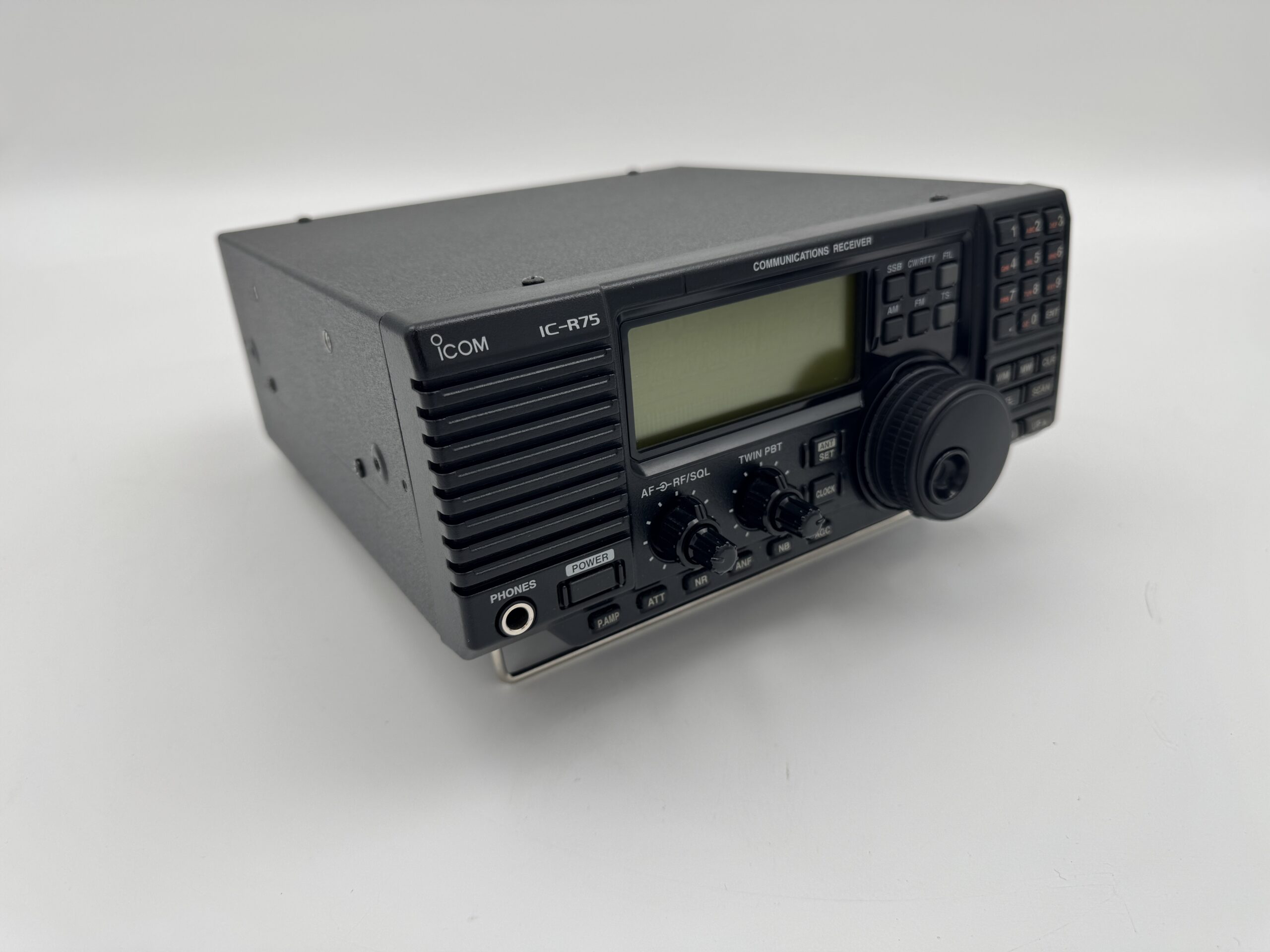

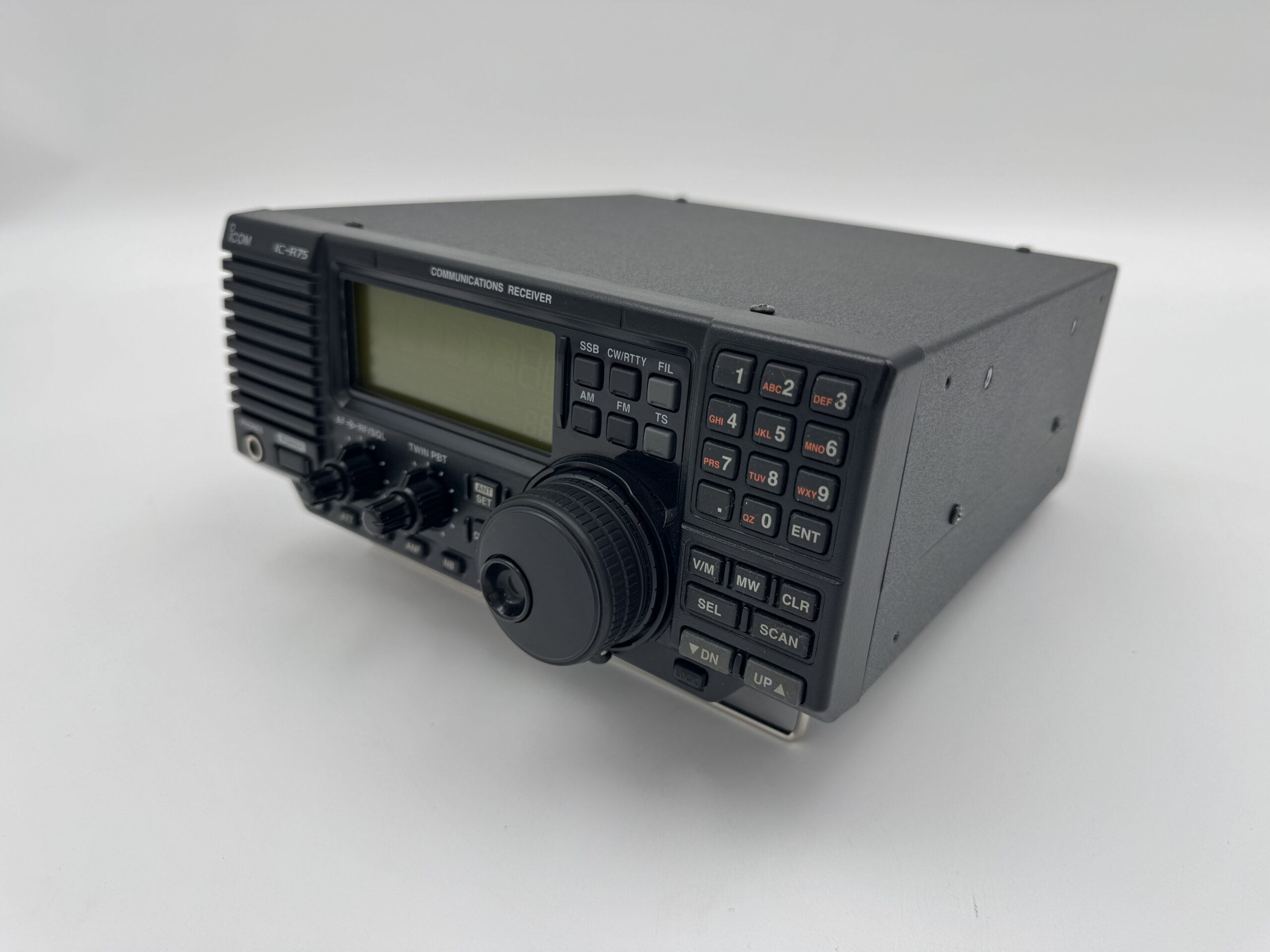

Icom IC-R75 USED | 90 Days Warranty

The Icom IC-R75 is a versatile receiver offering frequency coverage from 0.03 to 60 MHz, with specific limitations for the Asia version. It supports multiple modes, including USB, LSB, CW, RTTY, AM, and FM, and features 101 memory channels (99 regular and two scan edges). The receiver’s frequency stability is impressive, maintaining less than ±7 ppm for the first hour after power-on, and less than ±1 ppm/hr thereafter at a standard temperature of +25°C. It operates effectively within a temperature range of 0°C to +50°C, ensuring reliable performance across various environments.

Regarding power requirements, the IC-R75 operates on a 13.8 V DC supply with a current drain of 0.9 A in standby mode and up to 1.1 A with maximum audio output. The device is equipped with an SO-239 antenna connector and measures 241 mm in width, 94 mm in height, and 229 mm in depth, weighing approximately 3.0 kg. The remote connectivity options include an RS-232C D-sub 9-pin and a CI-V connector, enhancing its usability in various setups.

The receiver employs a triple-conversion super heterodyne system with specified intermediate frequencies for different modes, ensuring high sensitivity across its operational range. For instance, when the preamplifier is activated, it achieves a sensitivity of 0.16 μV in the 1.8–28 MHz range for SSB/CW/RTTY. Additionally, the IC-R75 meets rigorous MIL-STD standards for shock and vibration, making it a robust choice for demanding conditions.
