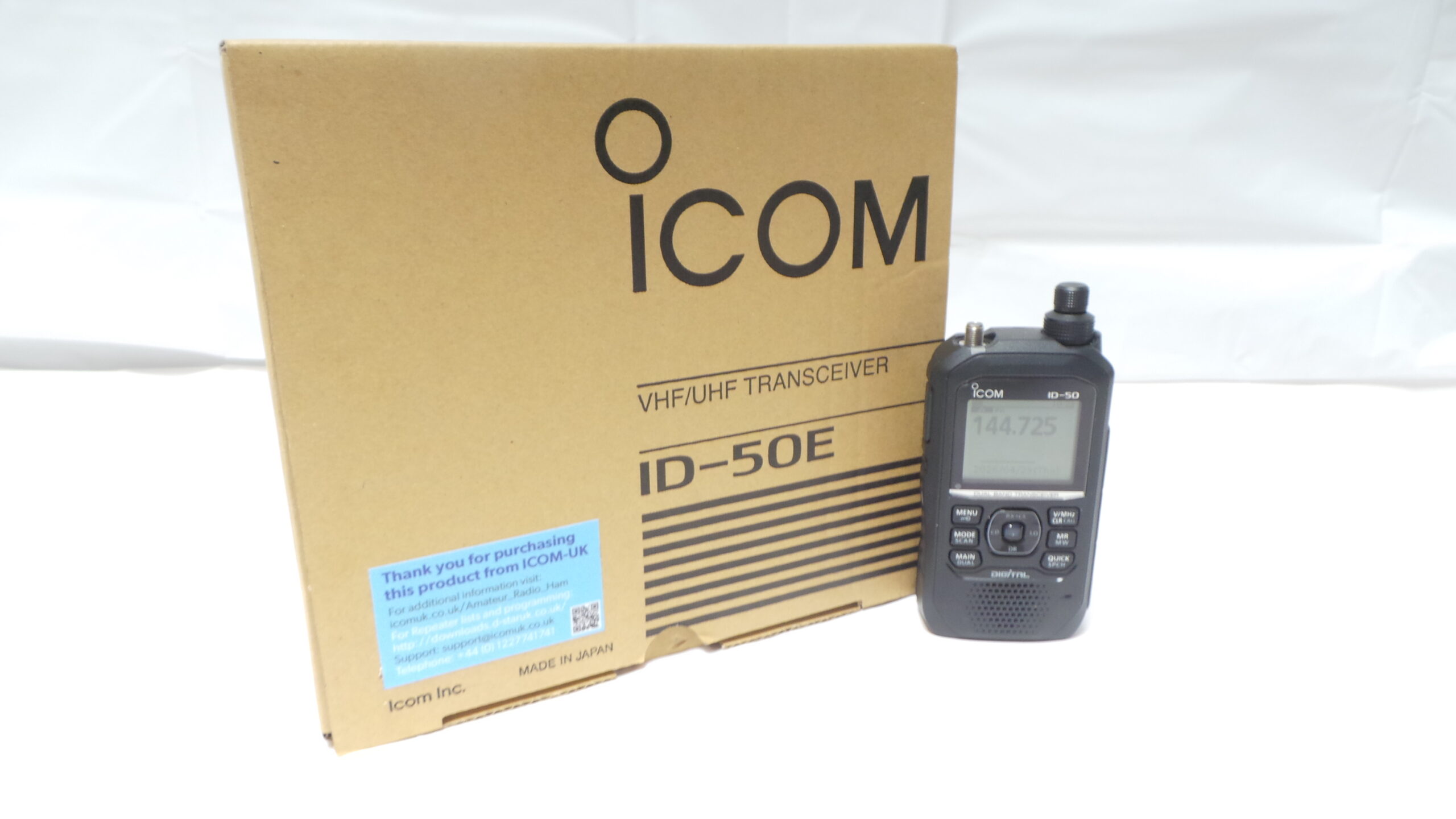

Icom ID-50E Dual Band D-STAR Digital Transceiver

The Icom ID-50E is a compact and powerful VHF/UHF dual band handheld transceiver, supporting both D-STAR digital and analogue FM operation. Designed for modern amateur radio users, it combines global connectivity, advanced digital features, and user-friendly operation in a rugged, portable form.

 Worldwide Communication with D-STAR

Using D-STAR (Digital Smart Technology for Amateur Radio), the ID-50E allows:

•  Communication with stations worldwide via internet-linked repeaters
•  Local, gateway, and reflector-based QSOs
•  Seamless integration into the global amateur radio network

 DR (D-STAR Repeater) Function

Simplifies digital operation:

• Select “FROM” (repeater) and “TO” (destination)
• Supports:
  • Local calls
  • Gateway calls
  • Simplex operation
•  GPS-assisted repeater selection based on location
• Reflector linking control included

 Picture Sharing Function

Enhance your QSOs with image transmission:

• Send and receive photos in DV mode
• Compatible with:
  • ST-ID50A (Android™ app)
  • ST-ID50W (Windows software)
• Preview images directly on the radio display

 Terminal & Access Point Modes

Connect your radio to the internet via:

•  Android device
•  Windows PC

Benefits:

• Access D-STAR network without RF repeater coverage
• Operate via internet gateway functionality
• Compatible with Icom gateway systems

 Band Scope with Waterfall Display

• Visualise band activity in real-time
• Identify:
  • Active frequencies
  • Signal strength
• Modes include:
  • Center
  • Fixed
  • Fixed Scroll

 D-STAR Text Messaging

• Send messages via RS-MS1A Android app
• Remote control radio functions from your device
• Quick and efficient communication alongside voice

 Rugged & Waterproof Design

• IPX7 waterproof rating (1m for 30 mins)
• Durable, commercial-grade construction
• Suitable for outdoor and harsh environments

 Dualwatch Function

Monitor two bands simultaneously:

• VHF/VHF
• VHF/UHF
• UHF/UHF

Quickly respond to activity on main and sub bands

 Wide Receive Coverage

•  VHF Airband receiver
•  FM broadcast radio
• Ideal for monitoring a wide range of signals

 microSD Card Support

Store and manage:

• QSO recordings
• Voice memories
• Images
• GPS logs
• Firmware and settings

Supports cards up to 32GB

 Built-in GPS Functionality

• Share location and grid square
• Distance calculation between stations
• Supports:
  • Position Auto Reply
  • Near Repeater Search
  • GPS logging

 USB Type-C Connectivity

Modern, versatile interface:

•  Charging (USB-C)
•  PC programming
•  Data transfer (microSD access)
•  Terminal/Access Point mode
• CI-V control

 Battery Performance

• BP-272 (included): ~8 hours
• BP-307 (optional): ~12.5 hours

(Typical use: Tx/Rx/Standby = 1:1:8)

 Clear, Powerful Audio

• 750mW audio output
• Loud and intelligible sound
• Ideal for field and portable use

 Display & Usability

• Large full dot LCD display
• Simultaneous main & sub frequency display
• Backlight for low-light operation
• Intuitive icon-based menu system

 Additional Features

• DV fast data mode
• Voice recorder
• QSO logs in CSV format
• External DC power input
• Compatible with accessories from ID-52 / ID-51 / ID-31 series
• Supports BP-307 battery (from IC-705)
