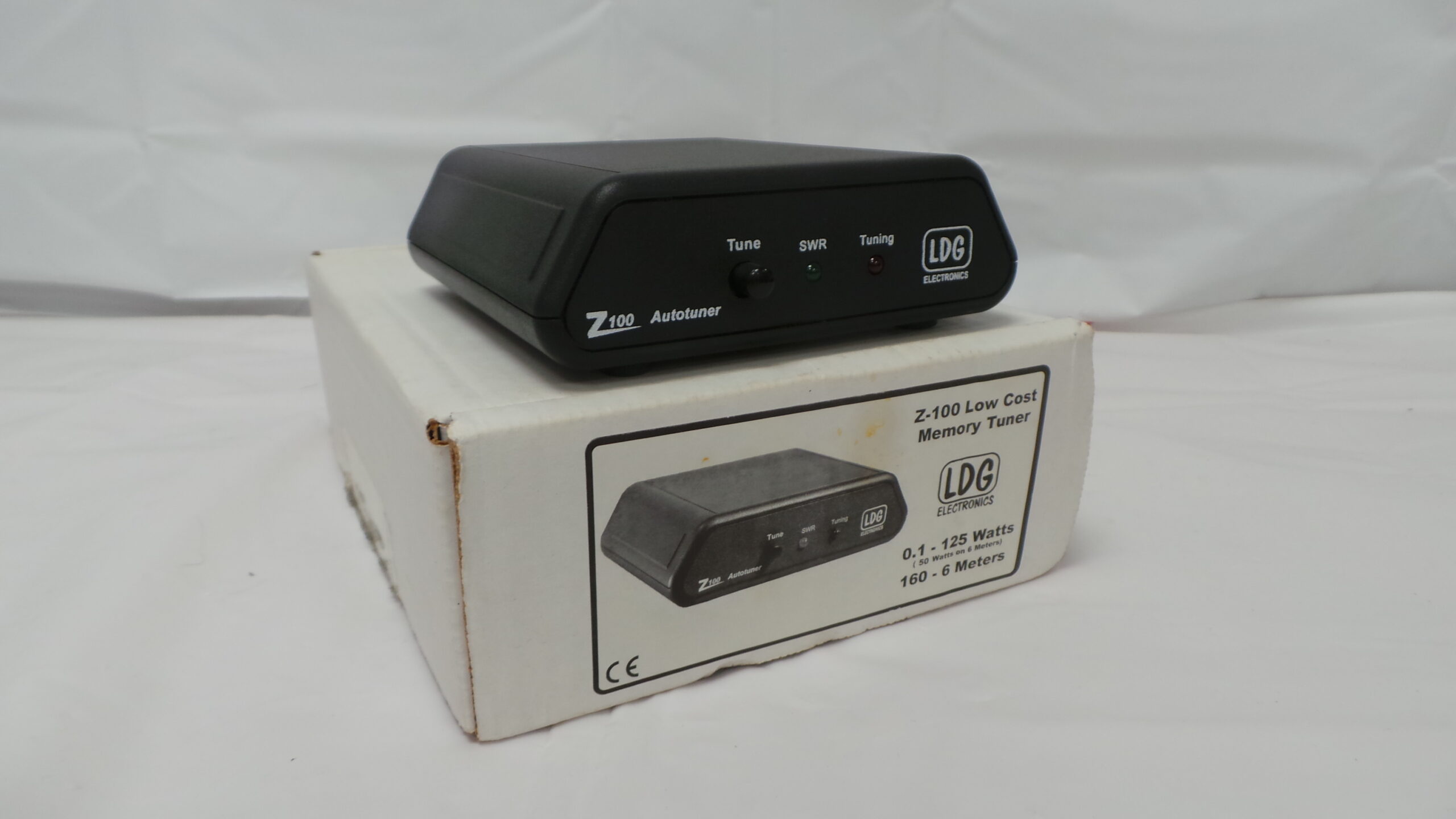

The Z-100 provides fully automatic antenna
tuning across the entire HF range for less than the cost of many manual tuners. It will tune
dipoles, verticals, Yagis or virtually any coax-fed antenna. It will match an amazing range of
antennas and impedances, far greater than some other tuners you may have considered. Also, it
consumes very little power making it ideal for battery-powered operations.
Features
• Automatically matches antennas from 6 – 800 ohms impedance, or a 10:1 SWR
• Can be powered by a pair of 9 volt transistor radio batteries in series, providing hundreds
of tuning cycles
• Very low current consumption: 300 mA during turning, nearly zero current (effectively
off) when not tuning. Your Z-100 is ideal for battery-powered operations.
• Uses latching relays, retains tuned setting indefinitely even when power is completely
removed
• Tunes from memory in less than one half second. A full tune will take from 1 to 6
second
• Microprocessor controlled, switched L tuning network
• 200 tune memories for almost instant return to previously tuned frequencies
• Antenna impedance: 6 to 800 Ohms (approximately 10:1 SWR, 3:1 on 6 meters)
• Continuous coverage 1.8 to 54 MHz
• Power range: 0.1 – 125 watts, 50 watts on 6 meters.
• Latching Relays hold tuned setting indefinitely, even when power is removed
• Tunes nearly any coax fed antenna. Use optional Balun for long wires.
• Triple function tune control button
• Tuning time: 1 to 6 seconds, 3 average (0.1 second minimum in memory mode)
• DC power requirements: 7 to 18 volts DC @ 300 mA during tune
• Enclosure sizes: 5” x 5” x 1.5”
• Weight: 14 ounce
