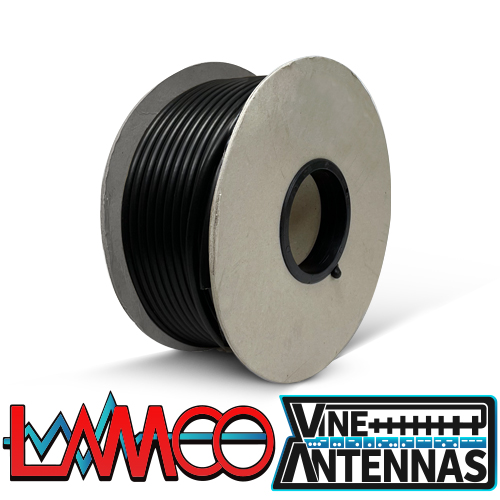

Multicom RG Mini 8 50Ohm Low Loss Cable

same performance as the larger RG213, but the smaller diameter makes it much easier to work with.

• High quality Low Loss co-axial cable
• Plain copper inner conductor
• Foam polyethylene dielectric
• Plain copper outer conductor
• Low smoke and fume polyvinyl-chloride sheath
• Impedance 50 ohms
• Capacitance 80pF/m
• Velocity ratio 80%
• Screening effectiveness 100-900 Mhz >55
• Attenuation:- dB/100m
• 50Mhz – 7.2
• 100Mhz – 10.5
• 400Mhz – 22.2
• 600Mhz – 27.6
• 860Mhz – 33.9
• 1000Mhz – 37.0
• 2400Mhz – 64.5
