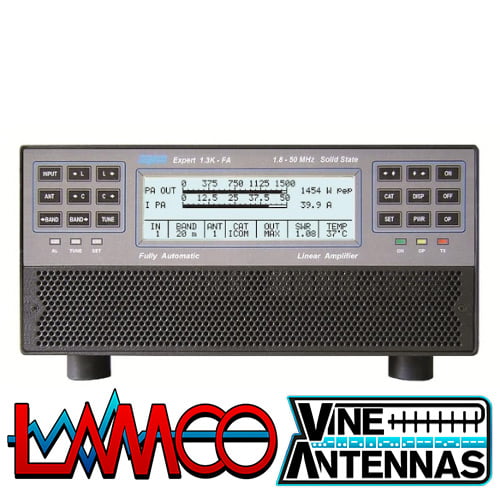

SPE EXPERT FCC Version 1.3K-FA – UP TO 1.5 KW SOLID STATE FULLY AUTOMATIC LINEAR AMPLIFIER inc ATU
• Powerful: up to 1.5 KW (1.3 KW typ.).
• Very Light: 7.5 Kg. (16.5 Ibs) typ.
• Very Small: h 12, w 28, d 36 cm (4.72”x11.02”x14.17”) connectors included.
• Wide Frequency Coverage: 1.8 MHz to 50 MHz, including WARC
• Internal Switching Power Supply with Power Factor Correction.
• No jumper changes necessary to work from 100VAC to 255VAC
• Manages 4 antennas automatically.
• Automatically switches between 2 transceivers.
• SO2R operation.
• Can manage an external set of Band Pass Filters.
• Optional ATU can be Built-In: bypassable per antenna and band.
• Up to 3 antennas can be selected for every band.
• Additional receiving antenna can be selected.
• Drives directly up to 4 dynamic antennas (SteppIR, Ultrabeam) for an easiest layout.
• No relay contacts are switched when current is flowing due to special software.
• QSK.
• Fully remotable.
• Remote control and all software upgrades fully available on SPE website.
• USB and RS 232 ports.
• 3 Selectable Power Output: MAX, MID (800 W), LOW (500W).
• Very clean and low distortion signal.
• Both inputs always perfectly matched.
• Quiet Operation: four fans linearly controlled by power supply and power amplifier temperatures.
• Fully protected.
• Fully Solid State: uses only one new very rugged device.
• Over 30000 lines of software for performances that cannot be found together in any other amplifier.
• Two very fast CPUs.
• CAT and band data compatible with all rigs on the market allowing automatic control of antennas, bands, ATU matchings.
• Available also without ATU allowing significant savings.
• Complete with heavy duty carrying bag allowing carry-on to airplanes.
• Certifications: CE, FCC pending.
