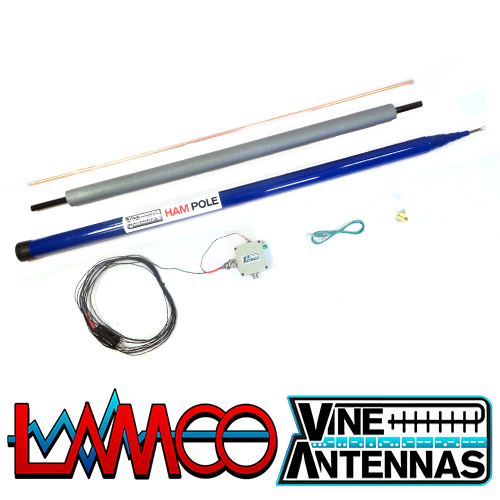

Vine Antennas AS-EF-33-HP | High Power End Fed Antenna Kit

Vine Antennas AS-EF-33-HP

An End-Fed Antenna Kit
40M to 10M (ATU Advisable)

What’s an End-Fed?

An end-fed antenna is tuned against ground whereby the physical ground forms half of a theoretical dipole.

This is a kit to enable you to construct an end-fed antenna in limited space.



Installation Suggestion

Drive the provided earth rod into the ground leaving about 6-9” protruding. Slip the eye ring of the balun over the earth rod and connect the rod to the green terminal with the cable provided. Take the wire at an angle to the top of a support to create a sloping antenna.`



Where is it Resonant?

By careful design of the balun and length of the antenna, your AS-EF-33-HP has the following SWR from 0 – 30MHz:



Specification

Bands: 40M to 10M

ATU Advisable

Power: 1Kw pep Max (balun rating)
