Vine Antennas DU-1500T Antenna Tuner & SWR Meter | 1.8–30 MHz | 2kW Max

The Vine Antennas DU-1500T is a high-performance manual antenna tuner and SWR/power meter, designed to optimize the efficiency of your transmitter, antenna, or SWL receiver. With precision impedance matching and built-in SWR and power metering, the DU-1500T allows you to achieve the best possible match across HF frequencies from 1.8 to 30 MHz.

Ideal for both amateur and professional use, this heavy-duty tuner supports up to 2 kW of power and features a highly flexible tuning system with dual capacitors and a comprehensive antenna switching system.




🔧 Key Features of the Vine Antennas DU-1500T:

  • Wide Frequency Range:
    Tunes continuously from 1.8 MHz to 30 MHz, perfect for HF operation.

  • High Power Handling:
    Rated for 1500W continuous, with a maximum of 2 kW PEP.

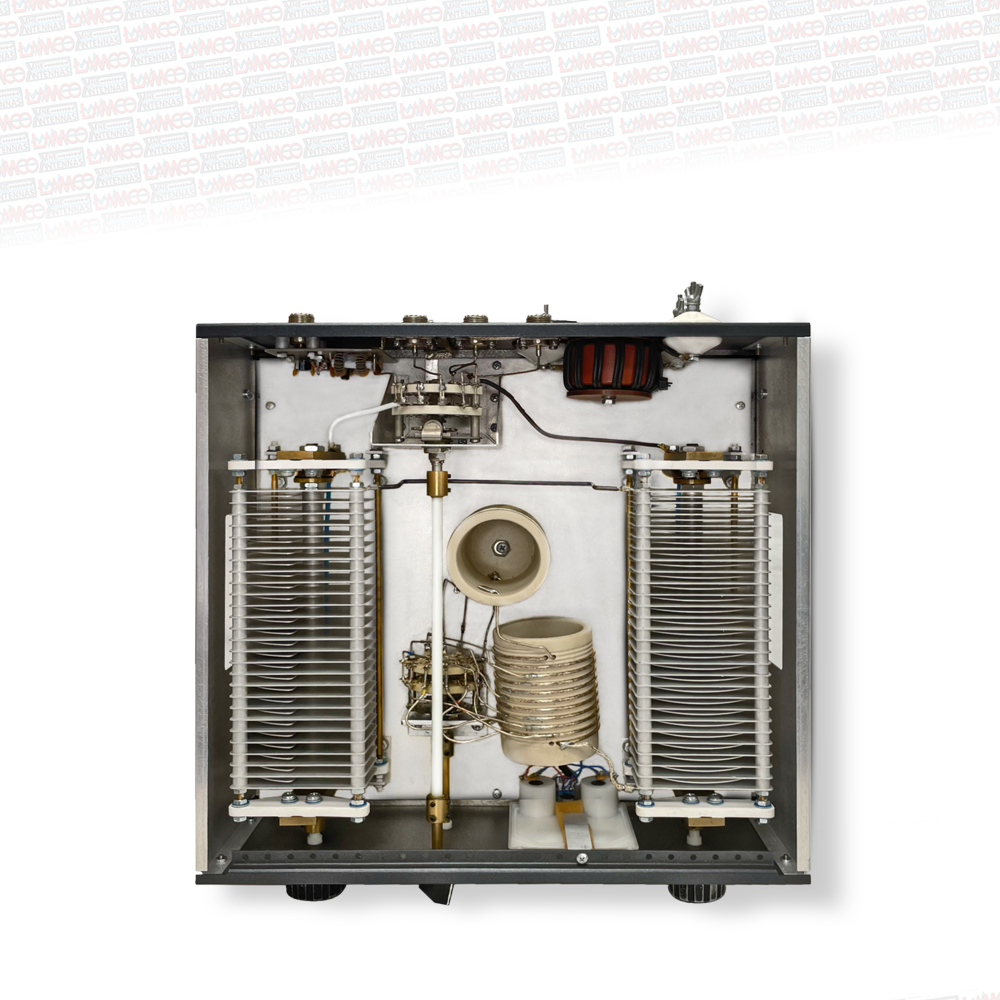

  • Precision Impedance Matching:
    Adjustable input and antenna capacitors (4.5kV, 330pF each) help fine-tune your system for optimal SWR.

  • Cross-Needle Power & SWR Meter:
    Displays forward and reflected power in real-time, with accurate SWR readings at the needle intersection.

  • Multiple Output Modes:
    Five-position ceramic antenna switch supports:

    • Tuned Coax 1

    • Tuned Coax 2

    • Bypass

    • Coax 1 Direct

    • Coax 2 Direct

    • Plus a Tuned Balanced Line + Coax 1 mode for twin-lead or wire antennas.

  • Built-In 4:1 Balun:
    Easily tune balanced antennas using the high-voltage ceramic terminals.




📊 Specifications:

  • Frequency Coverage: 1.8 – 30 MHz

  • Power Handling: 1500W continuous, up to 2kW max

  • Power Range Switch: 200W / 2kW

  • SWR Meter Type: Cross-needle for forward/reflected power and SWR

  • Input Impedance: 50Ω

  • Output Impedance: 25–600Ω (balanced), up to 2000Ω (wire)

  • Meter Accuracy:

    • 200W Scale: Forward 200W, Reflected 40W full scale

    • 2kW Scale: Forward 2kW, Reflected 400W full scale

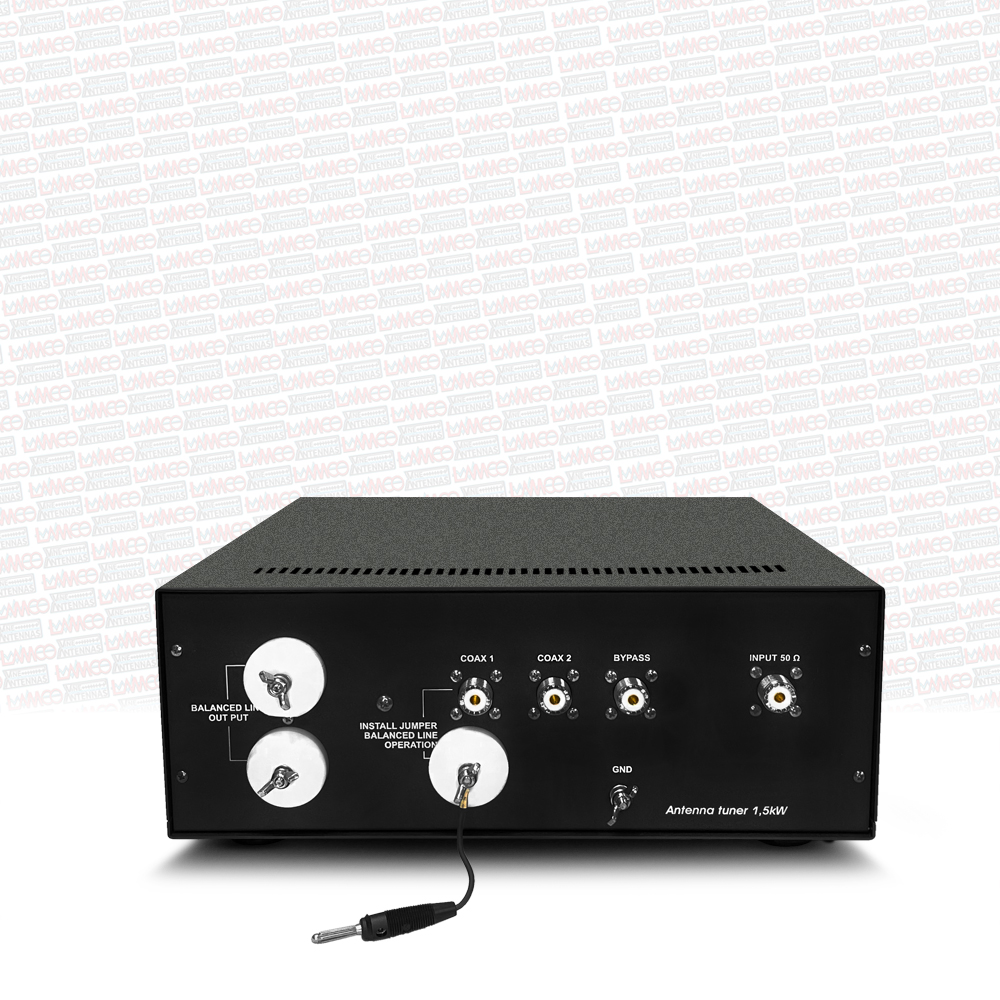

  • Connectors:

    • Coax 1 / Coax 2: SO-239 (Teflon)

    • Balanced Output: Dual ceramic terminals

    • Bypass / Dummy Load: SO-239

    • Ground Post: Wing-nut terminal

  • Dimensions: H 330 × W 330 × D 120 mm

  • Weight: 4.5 kg (10 lbs)

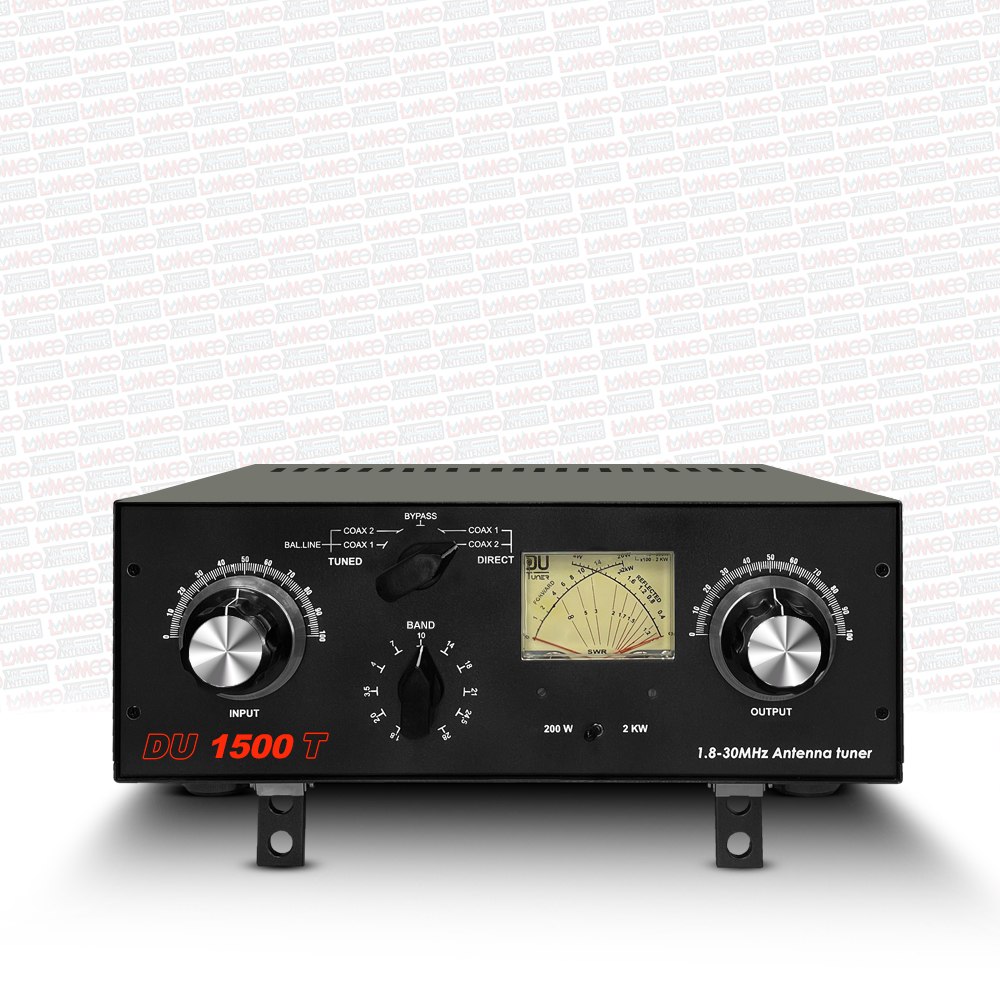

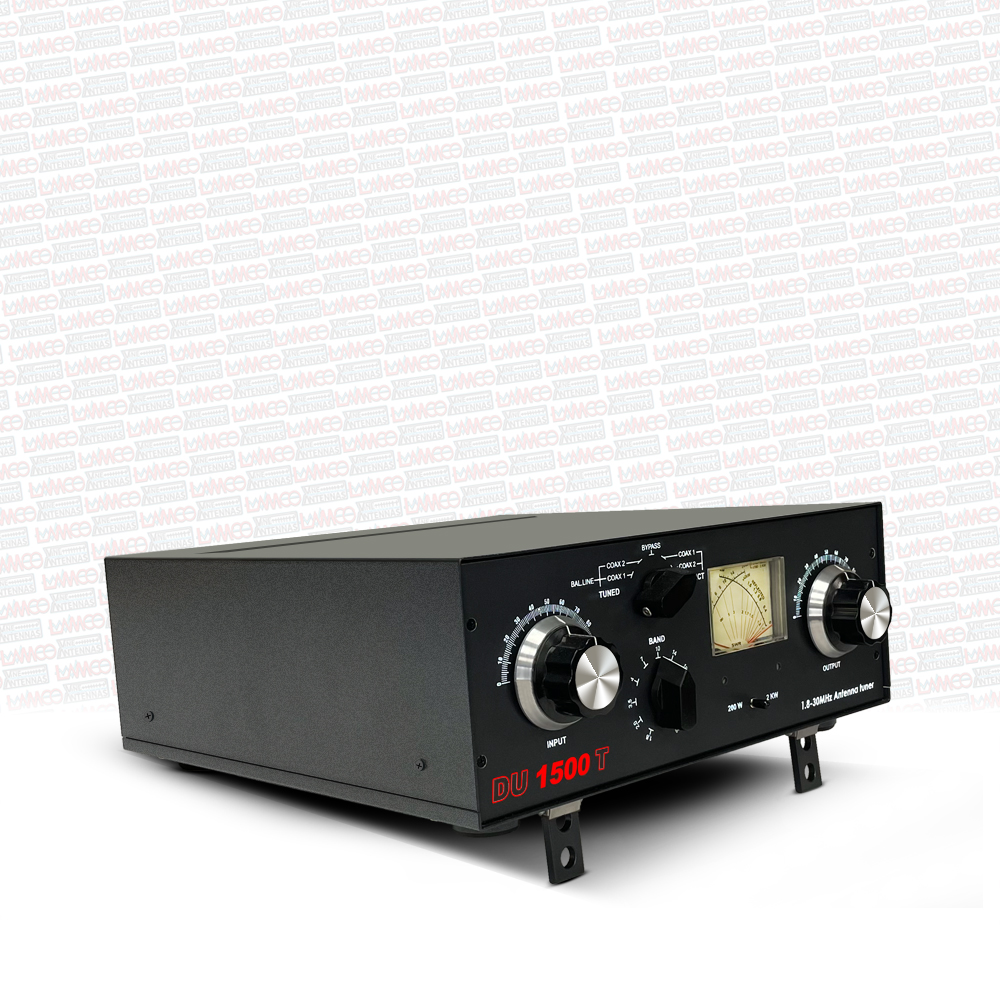

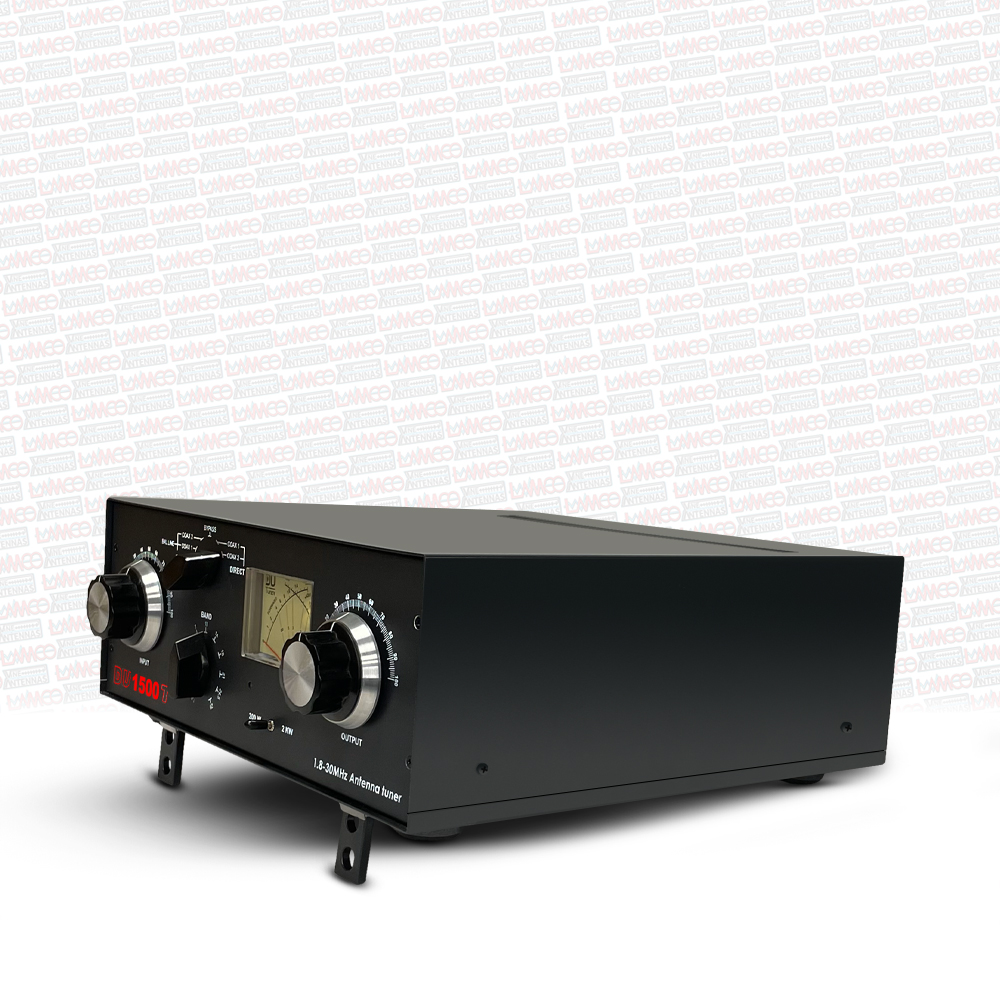

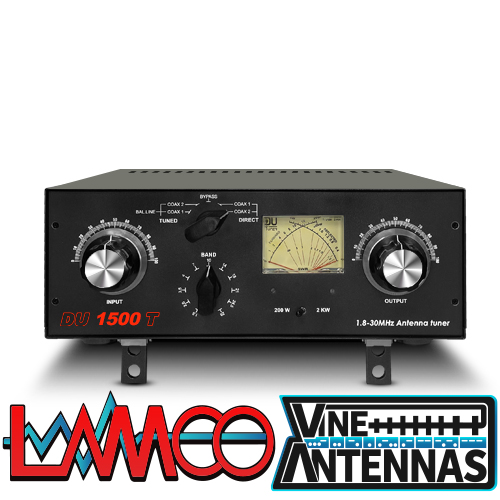

🔌 Front Panel Controls:

  1. Input Tuning (Transmitter):
    Adjustable capacitor for matching input impedance.

  2. Antenna Tuning (Output):
    Adjustable capacitor for matching output impedance.

  3. Power/SWR Meter:
    Dual-needle display for monitoring real-time performance.

  4. Output Selector (5-Way Switch):

    • Coax 1 Tuned

    • Coax 2 Tuned

    • Bypass

    • Coax 1 Direct

    • Coax 2 Direct

    • Balanced Line + Coax 1

  5. Range Selector:
    Switches between 200W and 2kW meter ranges.


🛠️ Installation & Tuning Guidelines:

  • Connect the transmitter to the RF Input using short coax.

  • Attach antennas to Coax 1, Coax 2, or the Balanced Output, depending on type.

  • Use the Output Selector to choose the correct tuning path.

  • Adjust the Input and Antenna controls while monitoring the SWR meter to reach the lowest possible SWR, ideally 1:1.

⚠️ Important: Always begin tuning with transmitter output at 50–100W. Do not exceed 1500W average. Never operate with the cover removed.


Safe Operation Notes:

  • Do not touch the balanced or end-fed antenna terminals during transmission—high RF voltages may cause burns.

  • When using a balanced line, install the jumper at Coax 1 and set the selector to “Tuned Coax 1.”

  • For wire antennas, use the ceramic terminals without the jumper.

  • A dummy load can be connected to the BYPASS port for safe tuning or testing.
