WestFlex 103 Semi airspaced low loss 50 Ohm Coax Cable.

Semi airspaced low loss 50 Ohm Coax Cable

Ideal for UHF and VHF or HF where extra low loss is required.

Specifications:

• Outer Sheath: 10.3 mm
• Inner Conductor: 2.62
• Minimum Bending Radius: 55mm
• Velocity Ratio: 0.81

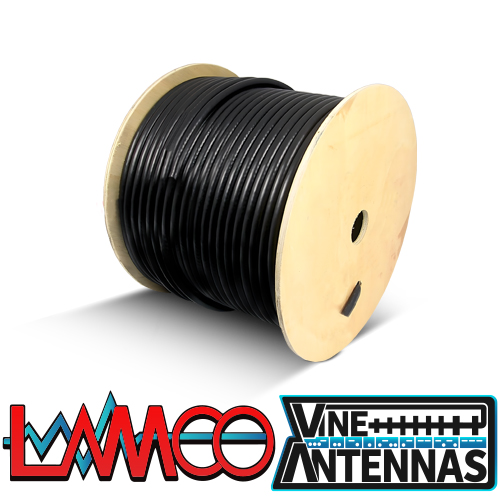

• 100m drum weight 16kg
• Insulation Diameter 7.2mm nominal
• DC Resistance Inner Conductor <3.8 ohms/km @20 degrees C
• DC Resistance Outer Conductor <8.8 ohms/km @20 degrees C

Loss per 100 Metres:

• 5 MHz: 0.8dB
• 50 MHz: 3.5 dB
• 100 MHz: 5.0dB
• 200 MHz: 7.5dB
• 400 MHz: 11.0dB
• 800 MHz: 16.6dB
• 1000MHz: 18.0dB
