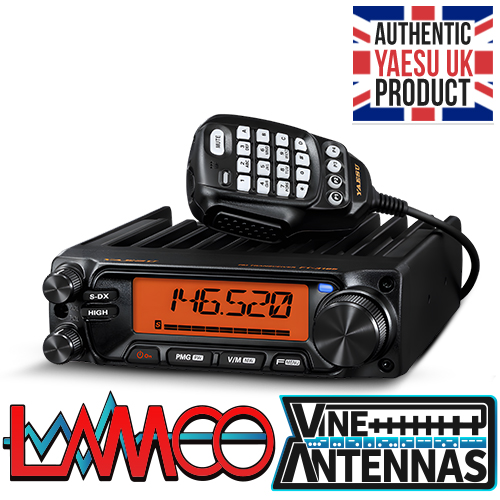

Yaesu FT-3185EASP Ultra-Rugged Analog 2-Meter Transceiver with 85W Power and Digital Audio Processing
The Yaesu FT-3185EASP delivers exceptionally powerful 85W RF output, ensuring long-distance, stable communication even under harsh conditions. Built with a massive heatsink and no cooling fan, it is engineered for consistent high-power performance. Selectable output levels of 85W / 50W / 20W / 5W make it versatile for various operating environments.
Enhanced with Super-DX and the ASP (Audio Signal Processing) Unit, the FT-3185EASP offers remarkable receive sensitivity and clean, reliable audio—even when dealing with weak signals.
High Output Power – Up to 85W
Stable transmission with selectable output: 85W / 50W / 20W / 5W
No cooling fan required thanks to massive passive heatsink
Super-DX Mode + ASP (Audio Signal Processor)
Boosts receiver sensitivity in weak-signal scenarios
ASP digitally enhances weak FM audio to remove noise
Activates simultaneously with the Super-DX function
PMG – Primary Memory Group
Store and monitor up to 5 VFO or Memory Channel frequencies
Real-time reception status displayed via bar graph
AUTO Mode: Transmit follows the received channel
MANUAL Mode: Transmit stays fixed; other channels remain viewable for activity
CFL – Custom Function List
Assign up to 9 frequently used functions from 44 available menus
Quick and intuitive access to key operations
221 Memory Channels
6-character alphanumeric labels
Keypad frequency entry via included DTMF microphone
Versatile Scan Modes
Preferential Memory Scan
VFO Scan
Priority Channel Scan (Dual Watch)
Advanced Operating Tools
CTCSS / DCS Encode & Decode
Separate transmit offset memory
RF Squelch and EPCS (Enhanced Paging & Code Squelch)
Busy Channel Lock-Out (BCLO)
Time-Out Timer (TOT)
Automatic Power-Off (APO)
Custom Display and Usability
Adjustable display illumination
Simple, intuitive interface
DTMF Microphone SSM-85D
Operating Manual & Documentation
Microphones
MH-42C6J: Standard Microphone
SSM-85D: DTMF Microphone (also included)
Power Supplies
FP-1023: 23A Power Supply
FP-1030A: 30A Power Supply
Speakers
MLS-100: External Speaker (12W Peak)
