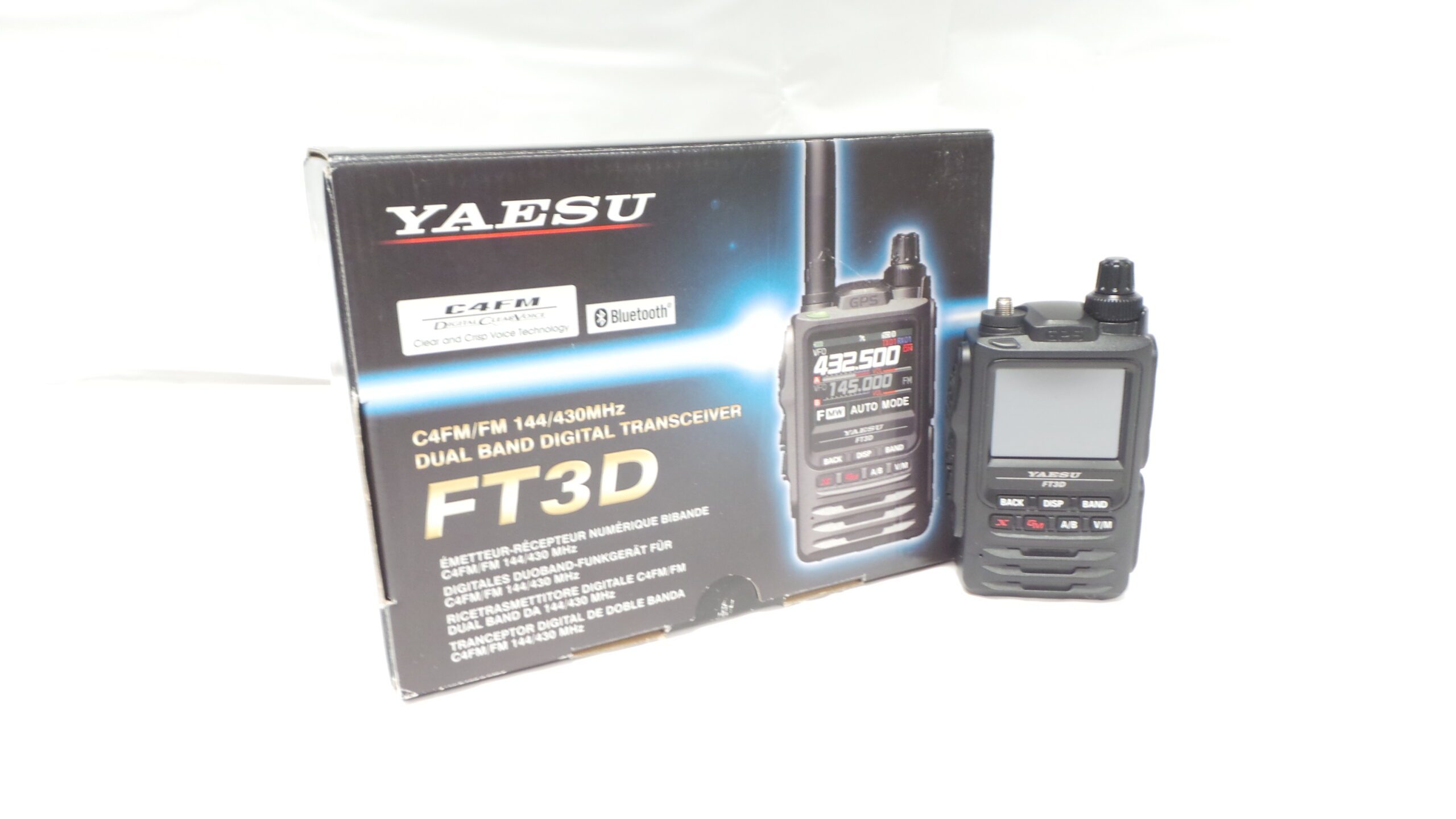

Yaesu FT-3D USED | 90 Days Warranty

FT3DR

2 m/70 cm Dual-Band Handheld

5 W C4FM/FM Dual Band Digital Transceiver

320×240 full color TFT LCD display

1200/9600bps APRS Data Communication

Compact Design and Reliable 5W RF Power Output (Selectable 5W/ 2.5W/ 1W/ 0.3W)

C4FM Digital V/D Mode, Voice FR Mode, Data FR Mode and Conventional FM Mode

700 mW of audio power with C4FM clear and crisp audio quality

Dual Band Simultaneous Receive (V+V/ U+U/ V+U/ U+V)

Built-in Bluetooth Unit enables the easy hands-free operation (NEW!)

Highly visible 320 x 240 dot matrix Full-Color TFT Touch Panel Display

Band Scope Function enables monitoring up to 79 channels centered around the current VFO frequency with high-speed (NEW!)

CAM (Club Channel Activity Monitor) function (NEW!)

System Fusion II compatible such as AMS (Automatic Mode Select), DG-ID (Digital Group ID), and Smart Navigation functions

WiRES-X Portable Digital Node compatible

Built-in 66ch High-Sensitivity GPS Receiver

1200/9600bps APRS Data Communication

Snapshot Feature

Voice Recording function for the received and transmitting voice and audio

Built-in On/Off Timer, Automatic Power Off (APO) and Time-out Timer (TOT)

micro SD Card Slot (up to 32GB)

IPX5 Rating Water Protection

Supplied Accessories

Antenna 7.2 V 2,200 mAh Lithium Ion Battery Pack (SBR-14LI) Battery Charger (SAD-25) Belt Clip (SHB-13) USB Cable Operating Manual

Specifications

Frequency Ranges: A(Main) Band RX: 0.5 – 1.8MHz (AM Broadcast) 1.8 – 30MHz (SW Band) 30 – 76MHz (50MHz HAM) 76 – 108MHz (FM Broadcast) 108 – 137MHz (Air Band) 137 – 174MHz (144MHz HAM) 174 – 222MHz (VHF TV) 222 – 420MHz (GEN1) 420 – 470MHz (430MHz HAM) 470 – 800MHz (UHF Band) 800 – 999.90MHz (GEN2, USA Cellular Blocked) B(Sub) Band RX: 108 – 137MHz (Air Band) 137 – 174MHz (144MHz HAM) 174 – 222MHz (VHF) 222 – 420MHz (GEN1) 420 – 470MHz (430MHz HAM) 470 – 580MHz (UHF Band) TX: 144 – 148MHz, 430 – 450MHz Circuit Type: NFM/ AM:Double-Conversion Superheterodyne FM /AM Radio: Direct-Conversion Modulation Type: F1D, F2D, F3E, F7W RF Power Output: 5W/ 2.5W/ 1W/ 0.3W (@ Batteery pack or EXT DC) Memory Channels: 1256 Waterproof Rating: IPX5 Case Size(W x H x D): 2.44″x 3.94″x 1.28″ (62 x 100 x 32.5 mm)w/ SBR-14LI, w/o Knob & Antenna Weight: 9.95oz (282 g) w/ SBR-14LI and Antenna
