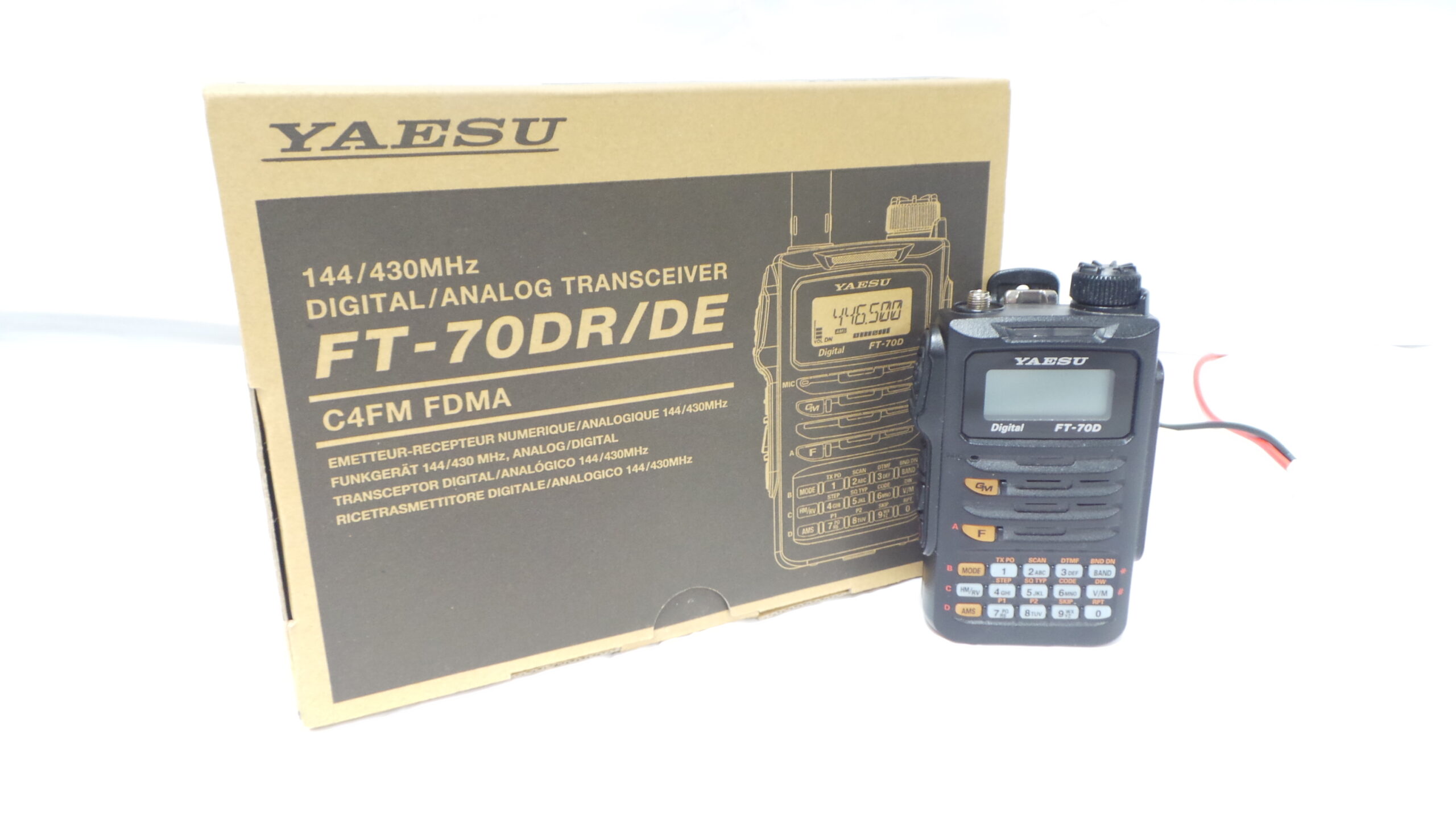

The Yaesu FT-70DE is a compact, rugged, and affordably priced dual-band handheld transceiver, delivering both traditional analog FM and advanced C4FM Digital operation. Designed as part of the YAESU System Fusion lineup, this powerful handheld offers reliable 5W RF output and an impressive 700mW of loud, clear audio from its large front speaker.
The Yaesu FT-70DE features Automatic Mode Select (AMS), which detects the mode of incoming signals—either C4FM or FM analog—and instantly switches accordingly, allowing seamless communication across digital and analog systems. A multicolor LED Mode Indicator on the front panel visually displays the active transmission mode at a glance, enhancing user experience.
Equipped with Digital Group Monitor (GM), DG-ID, and DP-ID, the Yaesu FT-70DE simplifies digital group operations. With selectable IDs from 00 to 99, users can efficiently organize communications into groups or personal IDs, enabling flexibility for clubs, emergency comms, or friends coordinating via radio.
Commercial-Grade Durability
Built to IP54-rated standards for dust and water resistance, the Yaesu FT-70DE is engineered for dependable operation in harsh environments. Ideal for outdoor activities, field operations, or emergency situations.
Wide Band Receive Coverage
Covers 108 MHz – 580 MHz, offering continuous reception for aircraft bands, public safety channels, and more.
Powerful and Versatile Scanning
VFO Scan for sweeping a frequency range
Memory Scan for stored channels
Priority Channel Scan for monitoring a key frequency
Weather Alert Scan for automatic notification of severe weather
Automatic Mode Select (AMS)
The AMS function automatically detects the incoming signal mode and switches the transceiver to match—C4FM digital or FM analog. This eliminates the need for manual switching and ensures optimal communication every time.
Advanced Digital Features
Digital Group Monitor (GM)Â with DG-ID and DP-ID for intuitive group communication
Mini-USB Port for easy PC programming and firmware updates
External DC Jack for alternate power and charging
RF Squelch, Busy Channel Lock-Out (BCLO), Time Out Timer (TOT), and CTCSS/DCS operation for operational control
Automatic Power-Off (APO)Â function to conserve battery life
| Category | Model | Description |
|---|---|---|
| Antennas | CN-3 | SMA to BNC Adaptor |
| YHA-72 | Standard Antenna | |
| Batteries | SBR-24LI | 1800mAh Li-ion Battery |
| Cases | SHC-27 | Carrying Case |
| Chargers | E-DC-6 | DC Cable (Plug and Wire Only) |
| SAD-25B | AC Adapter | |
| SBH-28 | Charging Cradle | |
| SDD-13 | DC Cable with Cigarette Lighter Plug | |
| Headsets | SSM-63A | Headset with Boom Mic and PTT/VOX |
| Microphones | CT-44 | Mic Adapter (2-Conductor to Single Jack) |
| SSM-17A | Speaker Microphone | |
| SSM-518A | Microphone | |
| Programming | CT-27A | Cloning Cable for FT-X0R / VX-10 / 210 |
