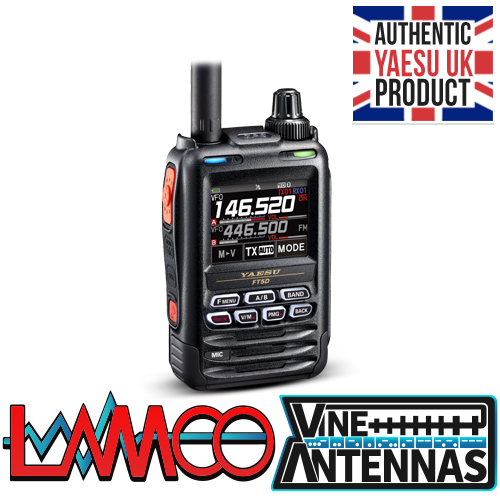

The Yaesu FT5DE is a premium 5W 144/430MHz dual-band digital handheld transceiver that combines rugged construction, modern features, and superior operability. As a full-featured C4FM radio, the FT5DE is ideal for amateur radio operators who demand flexibility, clarity, and durability in a compact device.
5 Watts of RF Power Output in a compact and ergonomic design (W2.44” x D1.34” x H3.94”)
1W High-Quality Audio Output, tuned for loud and clear communications
Real Dual Band Operation (V+V, U+U, V+U, U+V) with simultaneous independent receivers
Dual LED Indicators for quick visual recognition of active band and mode (C4FM or analogue)
Simultaneous C4FM digital standby operation supported
Shock-resistant construction with rubber corner protection
Waterproof IPX7 rating for reliable operation in all weather conditions
Comfortable flat-back body design for easy handheld use
High-resolution display with selectable frequency color (white, blue, or red)
3 Touch Panel Keys + 7 Physical Keys for intuitive operation
TOUCH & GO Operation – Quickly recall frequently used frequencies using the PMG key and graphical activity monitor
Real-Time Band Scope – View and tune up to 79 channels around the current VFO frequency
AMS (Automatic Mode Select) – Automatically switch between digital and analogue
DG-ID and Smart Navigation for streamlined digital operations
Memory Auto Grouping (MAG) and VFO Band Skip Function for easier channel management
Wideband Receive Coverage:
A Band: 0.5MHz–999.99MHz*
B Band: 108MHz–580MHz*
Built-in 66-channel GPS Receiver
1200/9600bps APRS Data Modem
Simultaneous AM/FM Broadcast Reception while monitoring two frequencies
*Guaranteed coverage within 144/430MHz amateur bands only.
The Yaesu FT5DE supports WiRES-X Portable Digital Node operation with a connected laptop and optional SCU-39 cable kit, enabling easy access to the global C4FM network from almost anywhere.
Includes 2,200mAh High-Capacity Li-ion Battery Pack (SBR-14LI)
Voice Recording Function
Micro SD Card Slot for additional storage and data transfer
SHB-26 Quick Release Holster – Easily attach or detach the FT5DE from your belt for on-the-go use
CN-3 – SMA to BNC Adaptor
FBA-39 – Battery Case (3x AA cell tray)
SBR-14LI – 2200mAh Li-ion Battery Pack
CT-169 – PC Connection Cable (Dsub9)
CT-170 – Data Cable
CT-176 – Data Cable (2.5mm)
SCU-39 – WiRES-X Cable Kit
SHB-26BK – Quick Release Holster (Black)
SHC-40 – Soft Carry Case
E-DC-6 – DC Cable (plug and wire only)
SAD-25B – AC Adapter
SBH-52 – Charging Cradle
SDD-13 – DC Cable with Cigarette-Lighter Plug
SSM-63A – Boom Mic Headset with PTT/VOX
SSM-BT20 – Bluetooth Headset
CT-44 – Mic Adapter (2-conductor female mic to single jack)
SSM-17A – Speaker Microphone
SSM-518A – Standard Microphone
SHB-13 – Belt Clip
CT-168 – Cloning Cable
The Yaesu FT5DE is the ultimate handheld for those who demand advanced C4FM capabilities, robust design, intuitive interface, and dependable performance. Whether you’re monitoring analog repeaters, exploring APRS features, or connecting to digital nodes via WiRES-X, the FT5DE delivers unmatched performance in a compact package.
